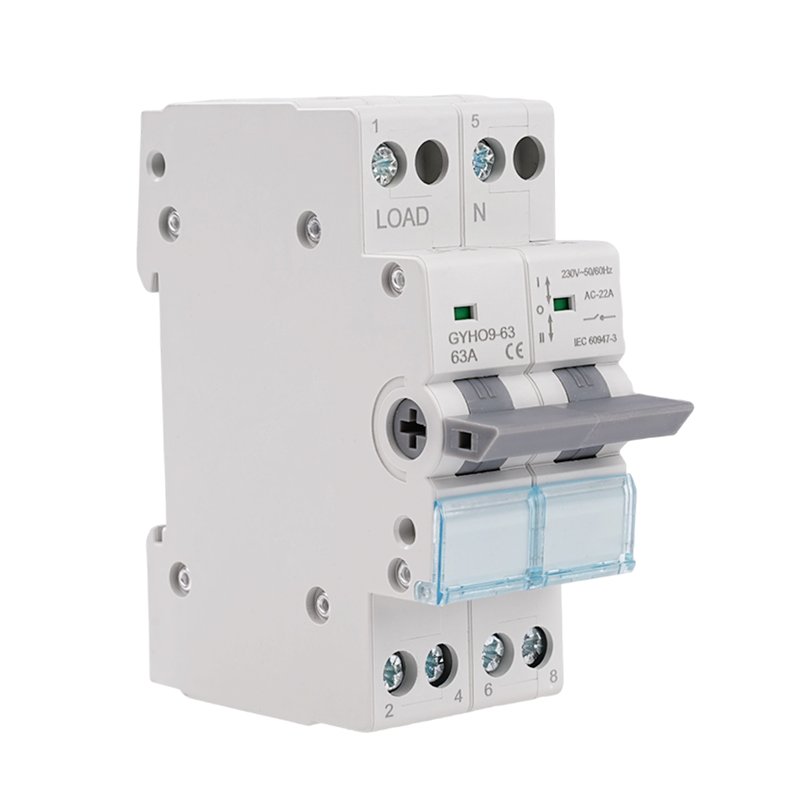

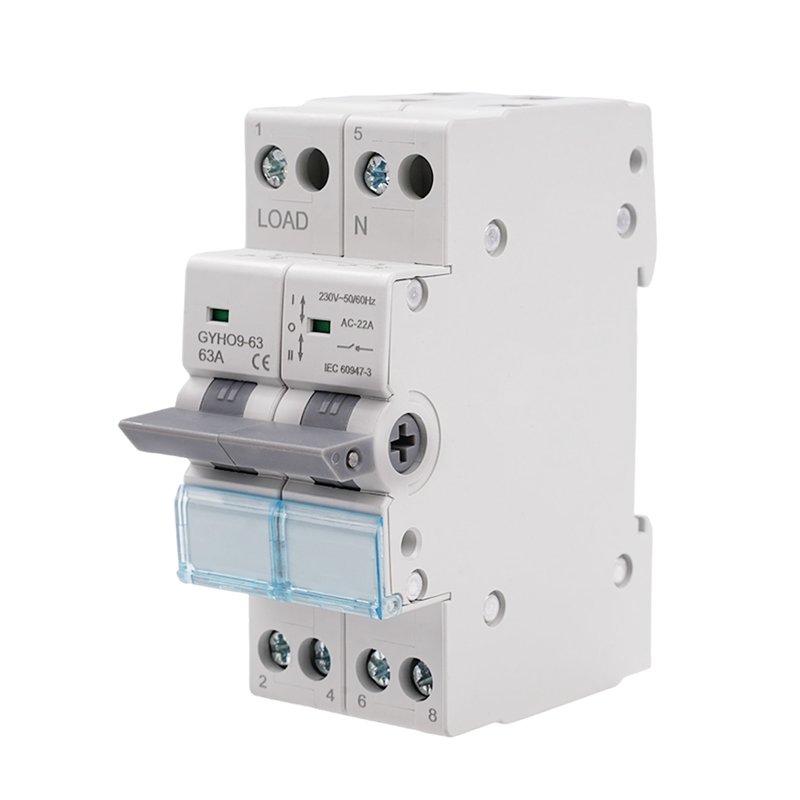

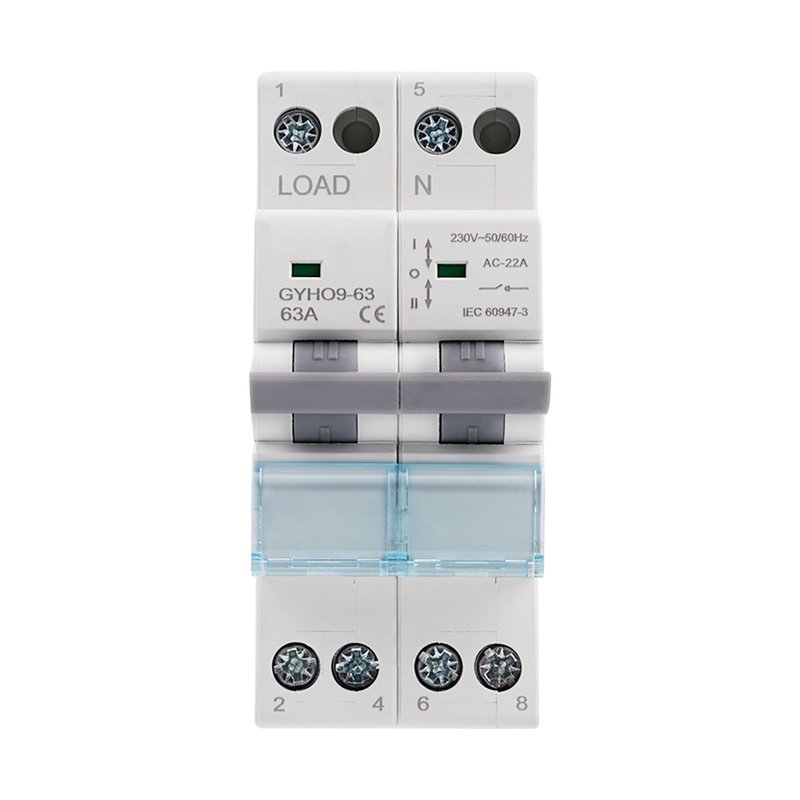

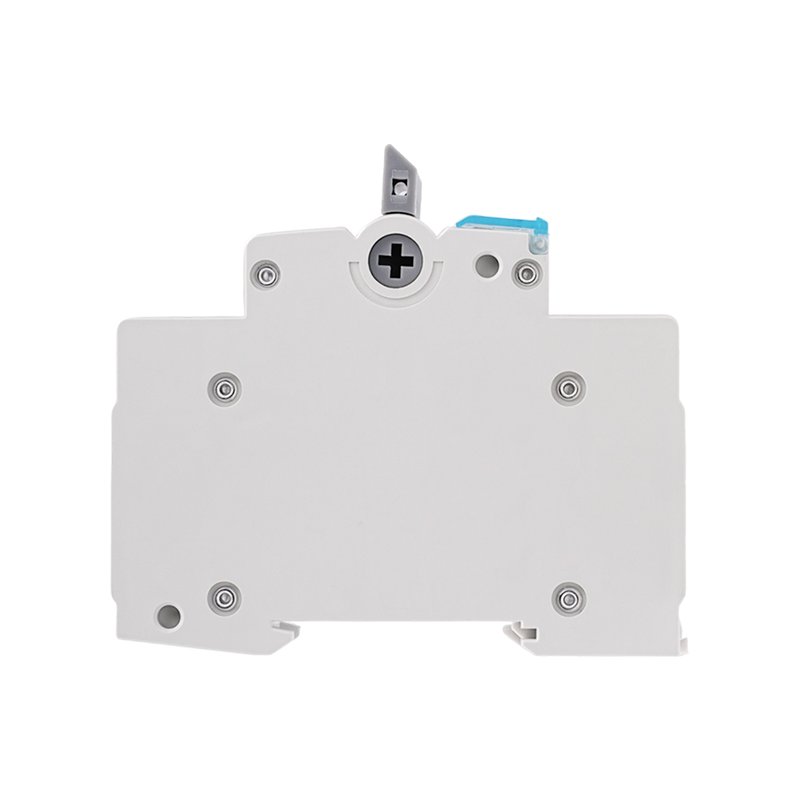

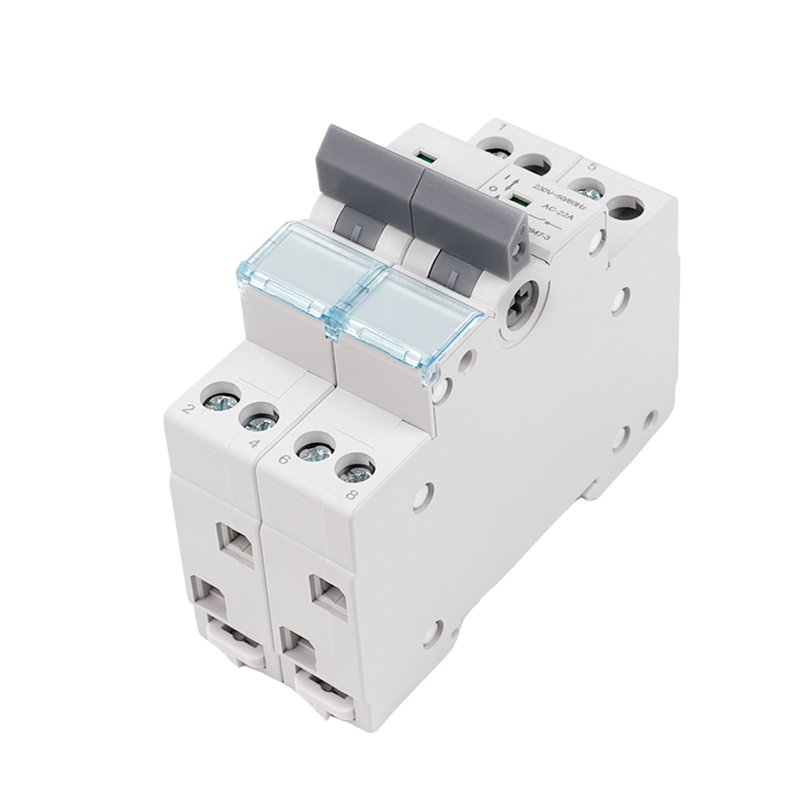

GYHO9-63 2P 230VAC 63A — Changeover Switch

Features

1. Switching function: The manual dual power transfer switch can switch between two power sources. It is used to switch the dual power circuit to ensure the stability of power supply and ensure the safety of equipment.

2. Panel indicator light: This dual power transfer switch adopts a humanized design and is equipped with a clear power indicator light to mark the power position, making it easy to understand which power supply is being used.

3. Flame retardant material: The switch is made of ABS flame retardant shell, which has good insulation and high temperature resistance, and the silver alloy contacts ensure good conductivity.

4. Guide rail installation: This manual dual power transfer switch has a compact structure and can be installed on a 35mm DIN rail, which is easy to use.

5. Application scenario: The switch is suitable for commercial, family residences, RVs or other dual power systems, and is a reliable energy management solution.

Specifications

Material: ABS flame retardant

Rated voltage: 230VAC

Current: 63A

Rated frequency: 50/60Hz

Number of poles: 2P

Short circuit current: 1200A

Mechanical life: 10000 cycles

Protection level: IP20

Ambient temperature: -5 C-50 C

Installation: 35mm DIN rail

Notes

Due to the different monitor and light effect, the actual color of the item might be slightly different from the color showed on the pictures.

Please allow 1-3cm measuring deviation due to manual measurement. Thank you for your understanding!

Packing List

1*Manual dual power transfer switch
