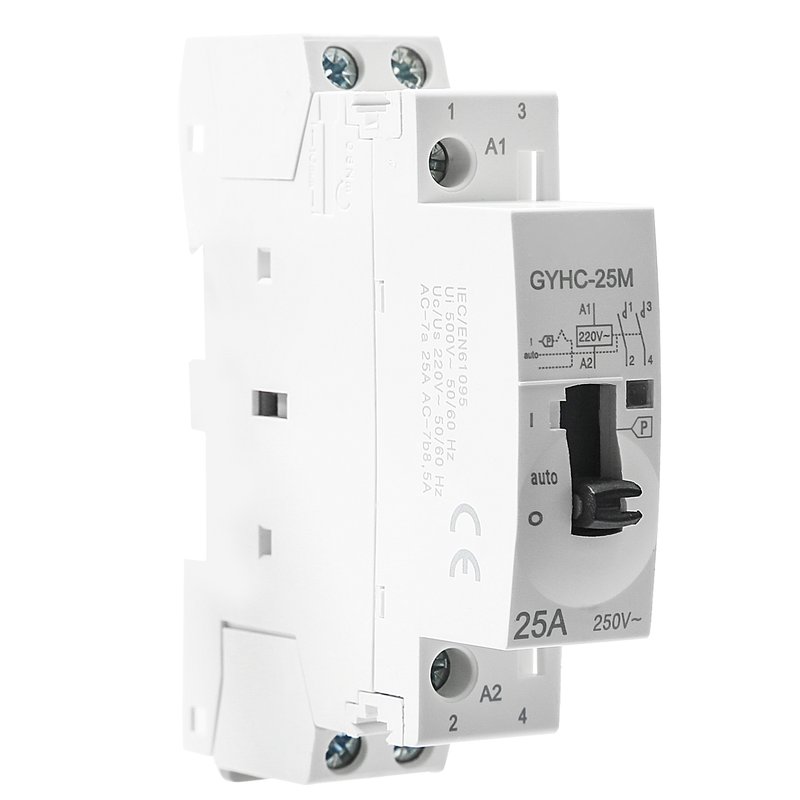

220V 2P 2NO — Changeover Switch

Main purpose:

Manual/automatic integrated AC contactors can be used in remote control, lighting, heating, ventilation, roller shutters, public hot water, mechanical ventilation systems, and low-inductance micro-inductive load environments.

​

Features

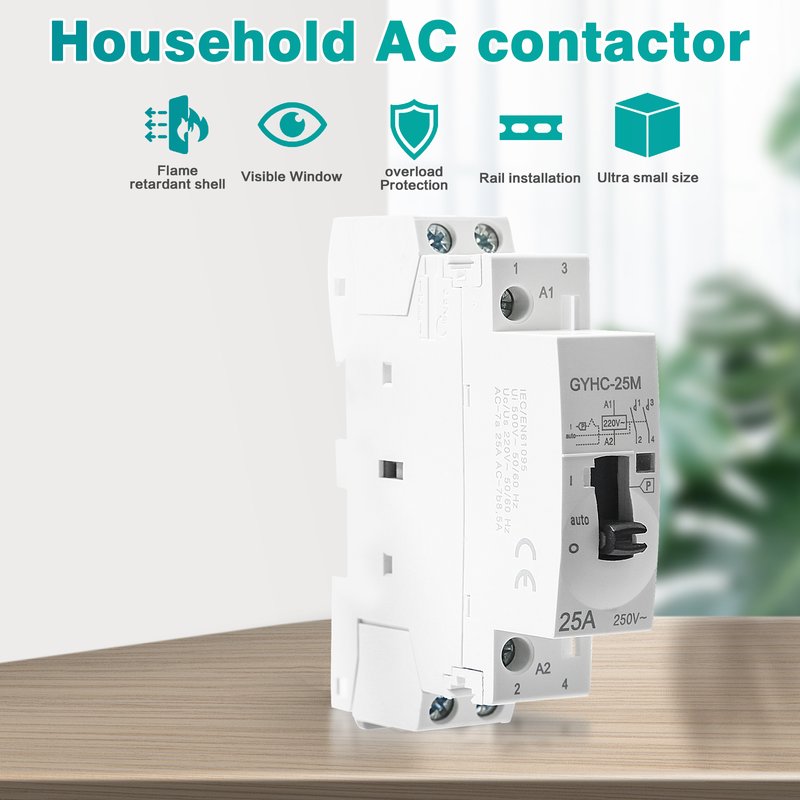

1. It adopts flame-retardant shell with high safety level. Energy saving and environmental protection, reducing energy consumption, 75% lower than traditional contactors.

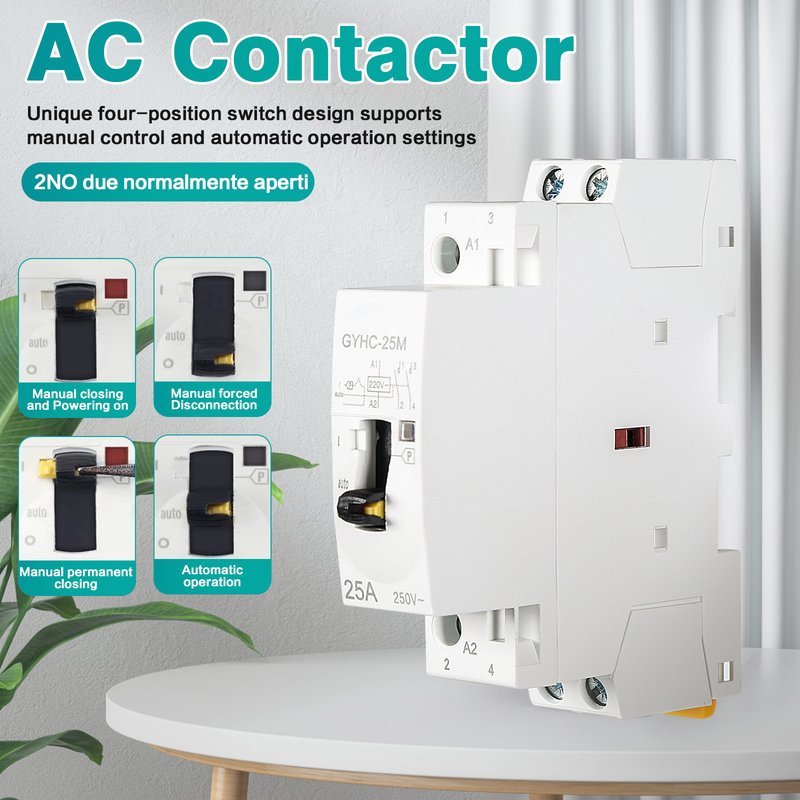

2. The AC contactor adopts a unique four-position switch design, which supports manual control and automatic operation settings.

3. Space optimization and performance improvement. Compared with traditional contactors, the size of the rail AC contactor is reduced by 70%.

4. Ultra-quiet, the operating noise is lower than 15dB, silent, no noise, safe to use and rest assured.

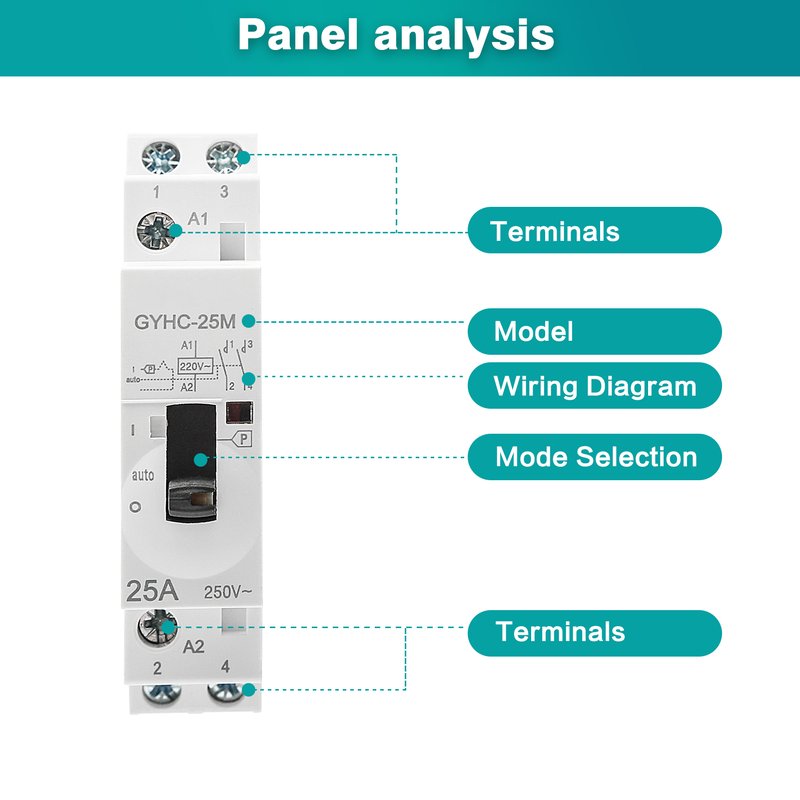

5. Using the display design, the connection and segment status are clear at a glance.

6. The excellent contact system has good conductivity, and the reliable electromagnetic system ensures fast response and switching.

7. Adopt 35mm standard guide rail design, guide rail installation, practical and convenient, good performance, small size, easy to carry and store.

Specifications

Item type: AC Contactor

Type: 2P

2NO: 2 normally open contacts

Rated current: 25A

Rated voltage: AC 220V

Rated frequency: 50/60Hz

Electrical life: 100,000 times

Maximum switching operations per day: 100 times

Insulation voltage: 500V AC

Pollution degree: 2

Rated impulse withstand voltage: 4kv

Protection class:

Contactor body: IP20

Installed behind the distribution box: IP40

Working temperature: -5 C-+60 C

Storage temperature: 40 C-+70 C

Moisture and heat resistance: level 2 (temperature 55 C, relative humidity 95%)

Notes

Due to the different monitor and light effect, the actual color of the item might be slightly different from the color showed on the pictures.

Please allow 1-3mm measuring deviation due to manual measurement. Thank you for your understanding!

Packing List

1*AC contactor
