275V GSP9-C40 40KA(2P — Wave Protector (Gray)

Features

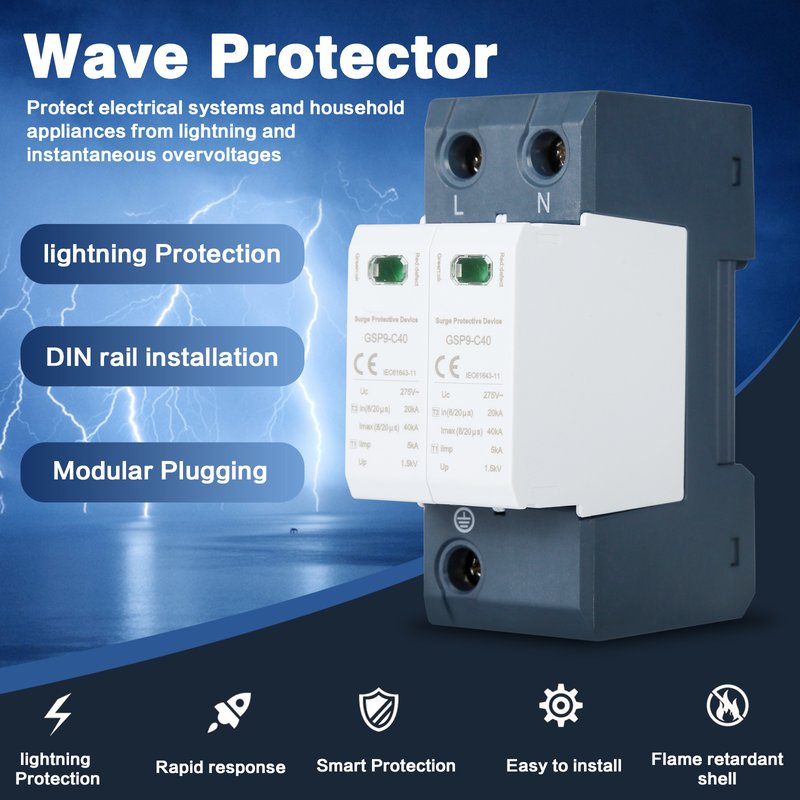

Uses: Household surge protection devices are used for Class C and Class D lightning protection, lightning potential compensation, lightning quick response, and protection of electrical systems and household appliances from lightning and instant overvoltage.

Material: The household surge protector uses copper accessories to achieve better conductivity.

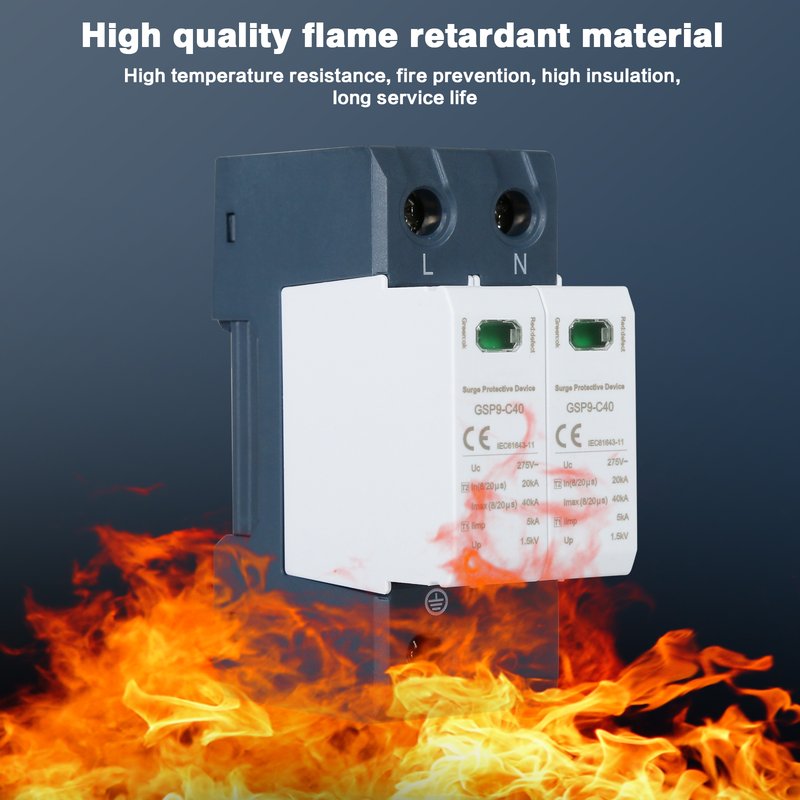

Safe: This surge protector has a flame retardant housing, which is fire resistant and safe to use.

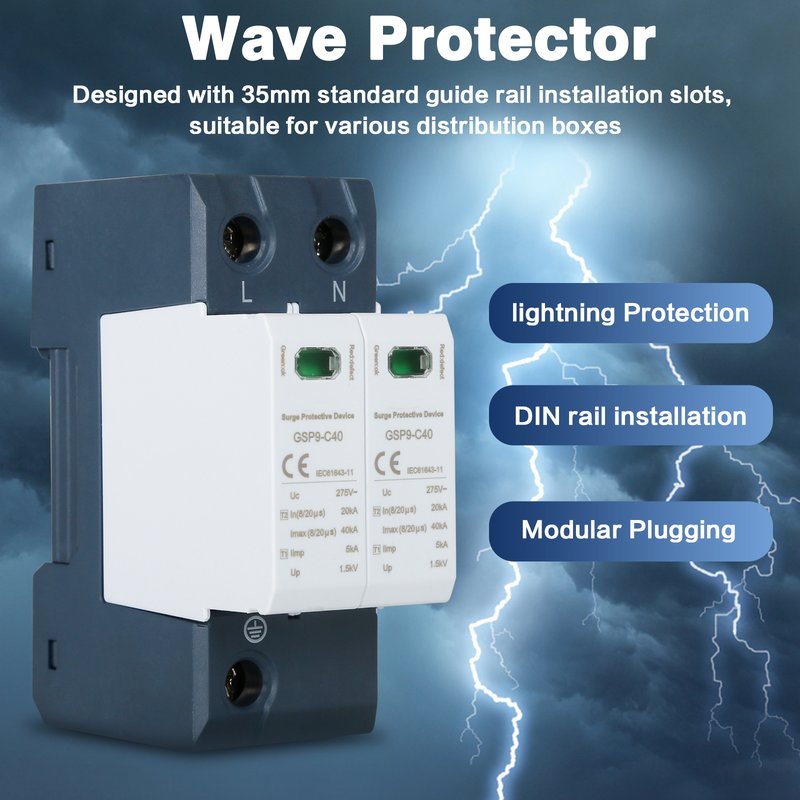

Easy to use: designed with 35mm standard guide rail installation slots, suitable for various distribution boxes; the lightning protection part of the surge protector is detachable, easy to install and disassemble.

Product parameters: household protection device; maximum continuous withstand voltage Uc: ~275V; nominal amplified current In: 20kA, maximum discharge current Imax: 40KA.

Specifications

Material: PC plastic + copper

Number of poles: 2P /4P optional

Rated working voltage: 220V

Maximum continuous withstand voltage Uc: 275V AC

Nominal amplified current In: 20kA

Maximum discharge current Imax: 40KA

Response time: <=25ns

Maximum impact current limp: 5KA

Protection voltage Up: 1.5KV

Working temperature: -40 C-80 C

Applicable wire: 4-10mm²

Installation method: 35mm guide rail installation

Product function: Lightning protection

Notes

Due to the different monitor and light effect, the actual color of the item might be slightly different from the color showed on the pictures.

Please allow 1-3mm measuring deviation due to manual measurement. Thank you for your understanding!

Packing List

1 x Surge protector
