GRT6-S1 DIN AC230V — Relay

Features

1. Multi-function: GRT6-S1 time relay has an ultra-wide delay time range: 0.1 seconds-100 days adjustable (10 options), which is used for cyclic delay control to provide periodic switching for the circuit.

2. Delay control: The time relay switches different working modes through S-A1, and the time settings for delay opening and closing are separate, so different delay times can be set through the control panel buttons.

3. Technical parameters: Voltage range: AC230V (50/60Hz), power input: AC maximum 6VA/1.3W, output contact: 1SPDT (1NO1NC), contact capacity: 10A/AC1, adjustment method: rotary knob.

4. Flame retardant material: The time relay is made of PC flame retardant material and high-quality electronic components, with fast response speed, stable performance and long service life.

5. DIN rail installation: The working status of the time relay is clearly visible through the LED indicator. It is small in size, easy to install and disassemble, and can be installed on a 35mm DIN rail.

6. Wide application: Time relays can be used for indoor timed ventilation, cycle dehumidification, lighting control, circulation pumps, heating element control, etc.

Specifications

Material: PC

Function: Asymmetric cycle time relay

Power terminal: A1-A2

Voltage range: AC230V (50/60Hz)

Power input: AC maximum 6VA/1.3W

Power supply voltage tolerance: -15%, +/-10%

Power supply indication: Green LED

Time range: 0.1s-100 days

Time setting: Potentiometer

Time deviation: 10%-mechanical setting

Repeat accuracy: 0.2%-setting value stability

Output contact: 1SPDT (1NO1NC)

Contact capacity: 10A/AC1

Output indication: Red LED

Mechanical life: 1x10(7)

Electrical life: 1x10(5)

Reset time: Maximum 200ms

Protection level: Front panel: IP40, terminal: IP20

Maximum cable size: Solid wire maximum: 1x2.5 or 2x1.5/with sleeve maximum: 1x2.5 (AWG 12)

Product size: 90*18*64mm

Notes

Due to the different monitor and light effect, the actual color of the item might be slightly different from the color showed on the pictures.

Please allow 1-3cm measuring deviation due to manual measurement. Thank you for your understanding!

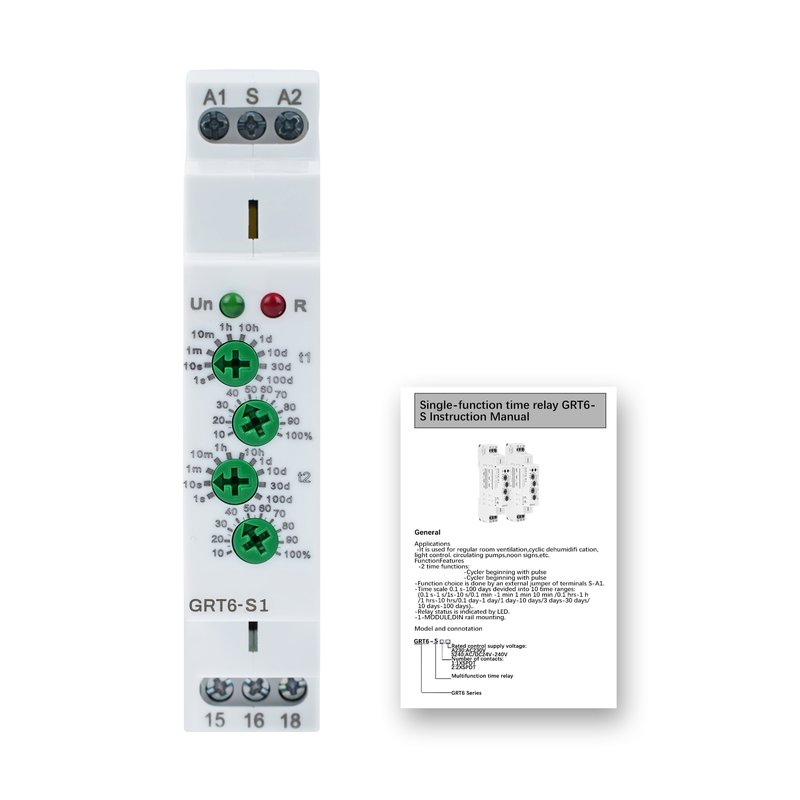

Packing List

1*Time relay

1*Instruction manual (English)
