GRT6-B1 DIN AC/DC24V-240V — Relay

Features

1. Shutdown delay: Multifunctional delay time relay, ultra-wide delay range: 0.1s-10 days, the delay time can be set through the control panel button to achieve delayed shutdown. Easy to use to meet the requirements of different equipment.

2. Technical parameters: Voltage range: AC/DC 24V-240V (50/60Hz), Burden: AC 0.09-3VA/DC 0.05-1.7W, Output contact: 1SPDT (1NO1NC), Contact capacity: 10A/AC1, Adjustment method: Rotary knob.

3. Flame retardant material: The time relay is made of PC flame retardant material and high-quality electronic components, with fast response speed, stable performance and long service life.

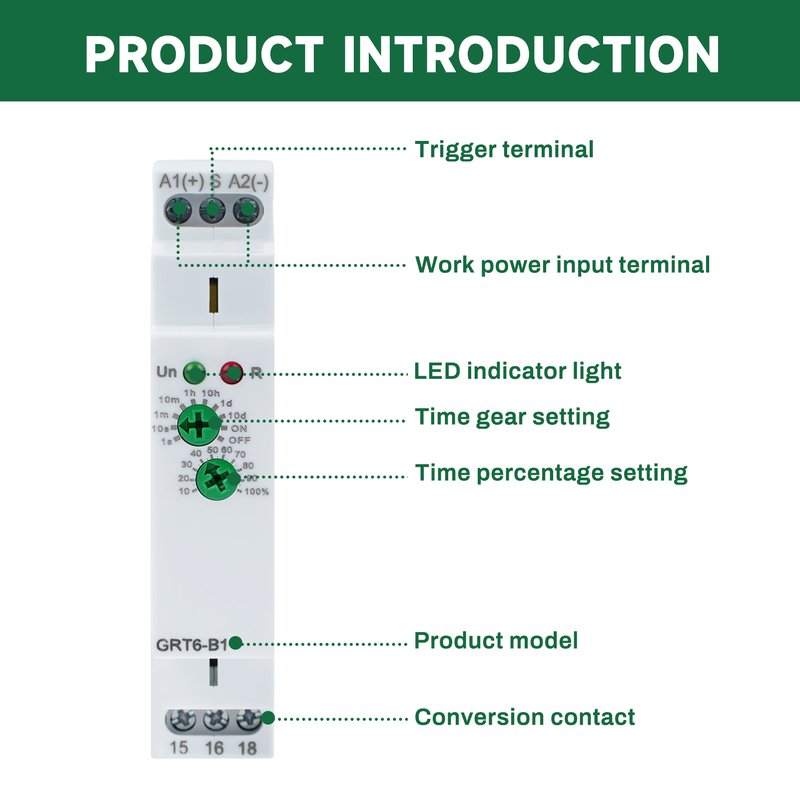

4. DIN rail installation: The working status of the time relay is clearly visible through the LED indicator. It is small in size, easy to install and disassemble, and can be installed on a 35mm DIN rail.

5. Wide application: The time relay can be used for industrial equipment, lighting control, heating element control, motor, electric motor, fan control, etc.

Specifications

Material: PC

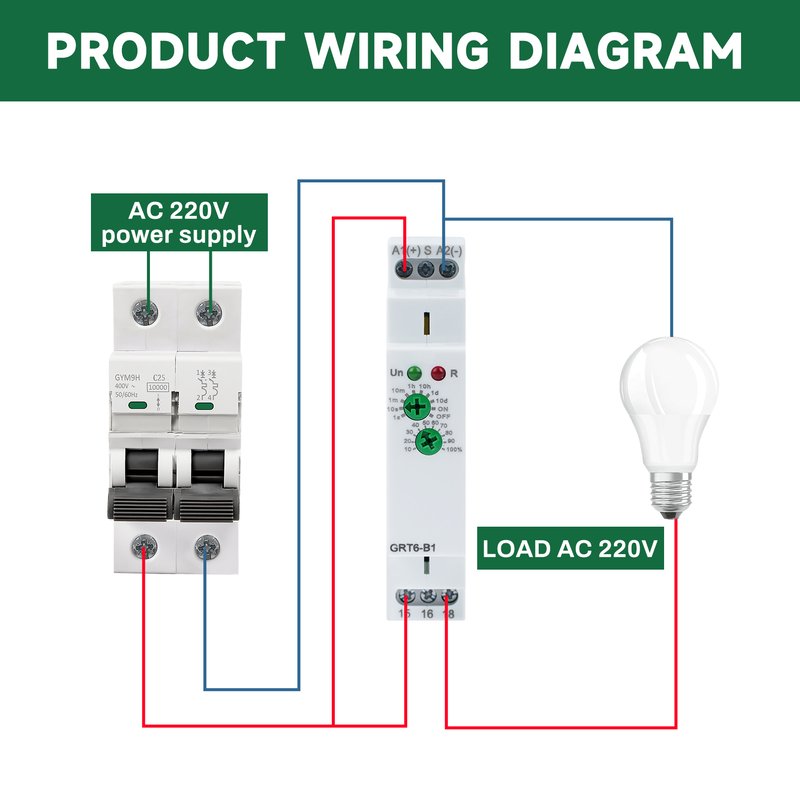

Power terminal: A1-A2

Voltage range: AC/DC 24V-240V (50/60Hz)

Burden: AC 0.09-3VA/DC 0.05-1.7W

Power supply voltage tolerance: -15%, +/-10%

Power supply indication: Green LED

Time range: 0.1s-10 days

Time setting: Potentiometer

Time deviation: 10%-mechanical setting

Repeat accuracy: 0.2%-setting value stability

Output contact: 1SPDT (1NO1NC)

Contact capacity: 10A/AC1

Output indication: Red LED

Mechanical life: 1x10(7)

Electrical life: 1x10(5)

Reset time: Maximum 200ms

Protection level: Front panel: IP40, terminal: IP20

Maximum cable size: Solid wire maximum: 1x2.5 or 2x1.5/with sleeve maximum: 1x2.5 (AWG 12)

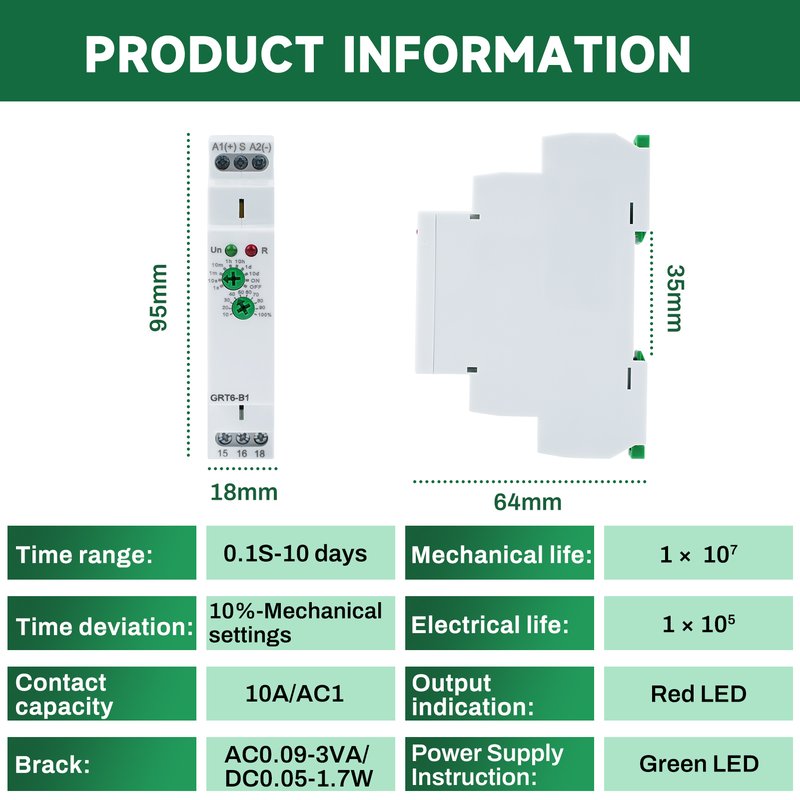

Product size: 90*18*64mm

Notes

Due to the different monitor and light effect, the actual color of the item might be slightly different from the color showed on the pictures.

Please allow 1-3cm measuring deviation due to manual measurement. Thank you for your understanding!

Packing List

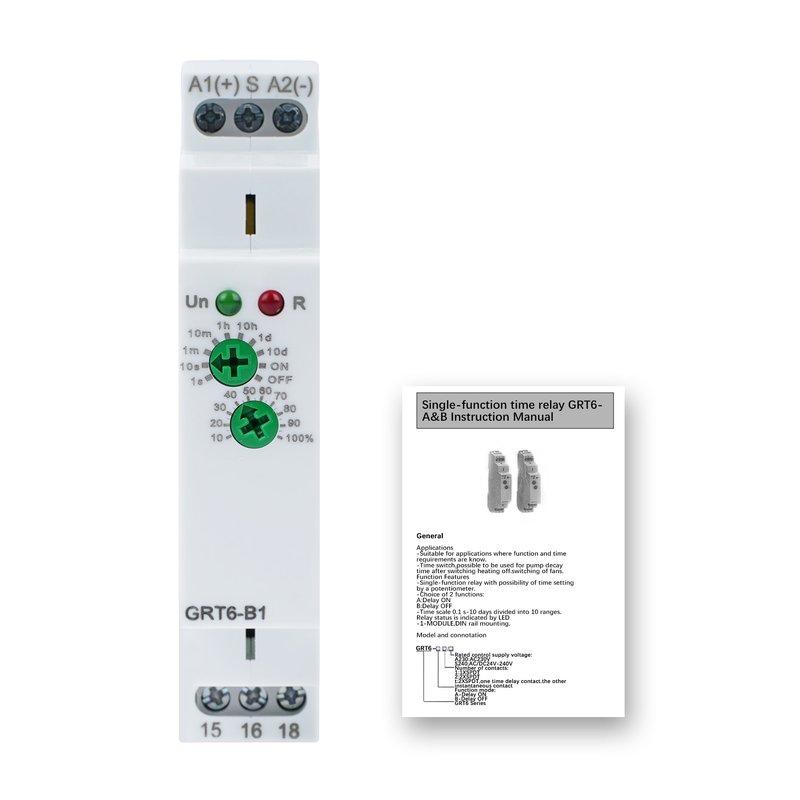

1*Time relay

1*Instruction manual (English)
