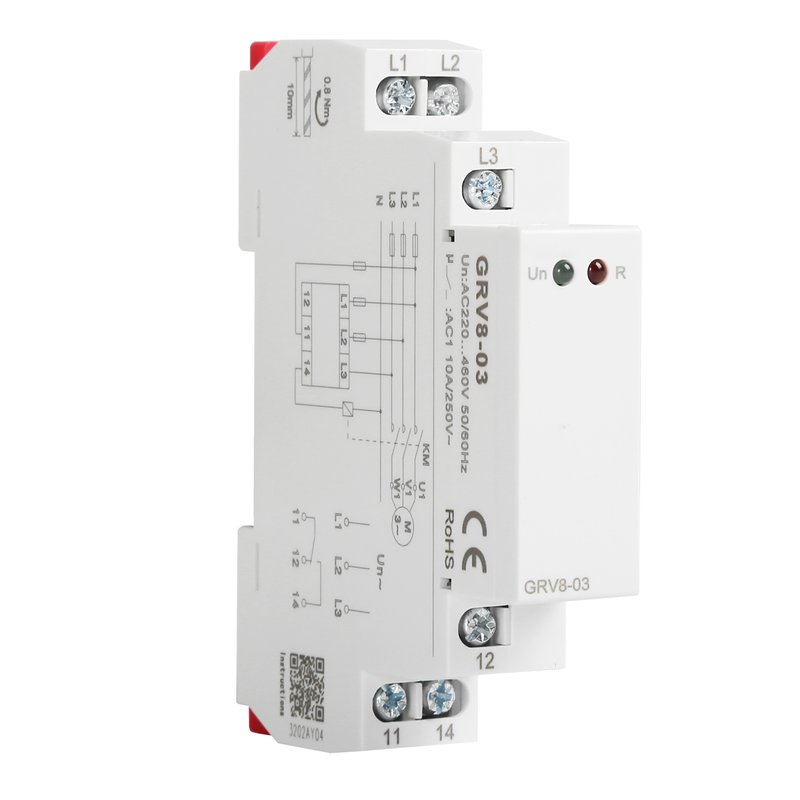

GRV8-03 (GRV8-03/M460) — Relay

Features

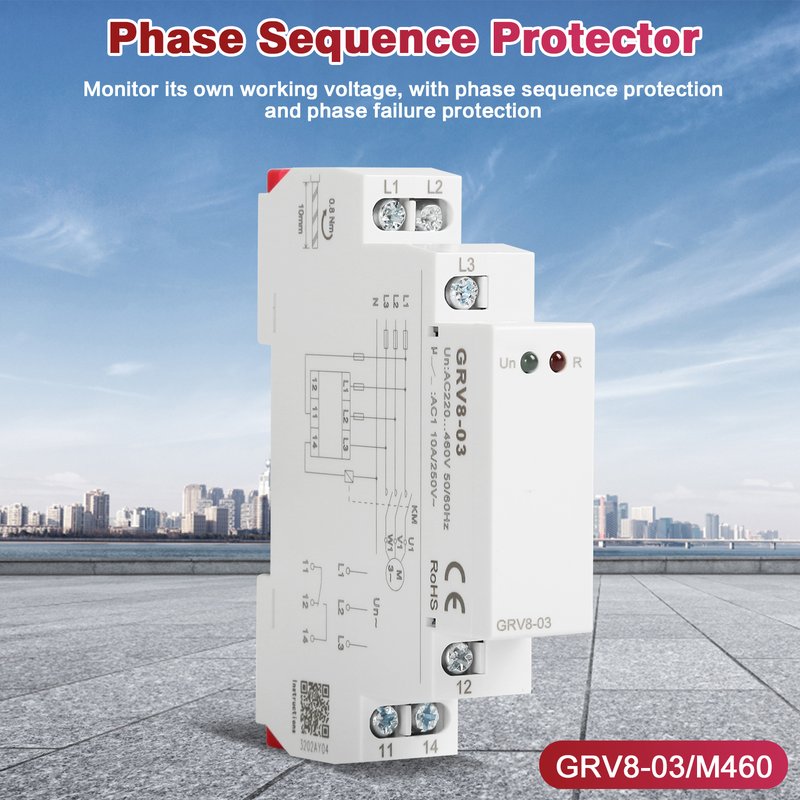

1. The monitoring relay can monitor its own working voltage, and has phase sequence protection and phase failure protection.

2. 8 kinds of rated voltages are adjustable, which can be applied to voltages in all regions of the world.

3. The working status of the relay is indicated by the LED indicator.

4. Ultra-small size, easy to install.

5. It is suitable for connection control of mobile equipment, preventing reverse operation of equipment, normal/emergency power switch, and preventing phase failure of electric loads, which may cause accidents.

Specifications

Model: GRV8-03 M460, GRV8-03 M265

Monitoring terminal: L1-L2-L3

Power supply: L1-L2

Rated working voltage selection:

GRV8-03 M460 : 220V-230V-240V-380V-400V-415V-440V-460VAC(P-P)

GRV8-03 M265 : 127V-132V-138V-220V-230V-240V-254V-265VAC(P-N)

Measurement frequency range: 50/60Hz

Measuring range: 176V-552V, 101-318V

Voltage threshold range: 2%-20% (rated voltage)

Imbalance threshold range: 5%-15%

Voltage fixed hysteresis rate: 2%

Power Indicator: Green LED

Action delay time: 0.1s-10s adjustable

Voltage measurement error: <=1%

Startup delay time: 0.5s

Knob setting accuracy: 1%

Reset time: 1s

Temperature fluctuation error: 0.05%C, temperature=20C

Output: 1 x SPDT 10A/AC250VAC

Minimum switching power: 500mW

Output relay indication: red LED

Mechanical life: 10000000

Electrical life (resistive load): 1000000

Storage and transportation ambient temperature: -35 C-75 C

Installation method: 35mm rail installation

Protection class: IP20

Installation height: 2000 meters

Pollution level: 2

Wiring capacity: 1x2.5mm2 or 2x1.5mm2

Available styles: M460, M265

Weight: about 76g

Size: 90*18*64mm

Notes

Due to the different monitor and light effect, the actual color of the item might be slightly different from the color showed on the pictures.

Please allow 1-3mm measuring deviation due to manual measurement. Thank you for your understanding!

Packing List

1*Phase sequence relay

1*Instruction manual
