“TUYA”APP AC220V 63A GPS8-10-U) — Residual Current Device (rcd)

Features

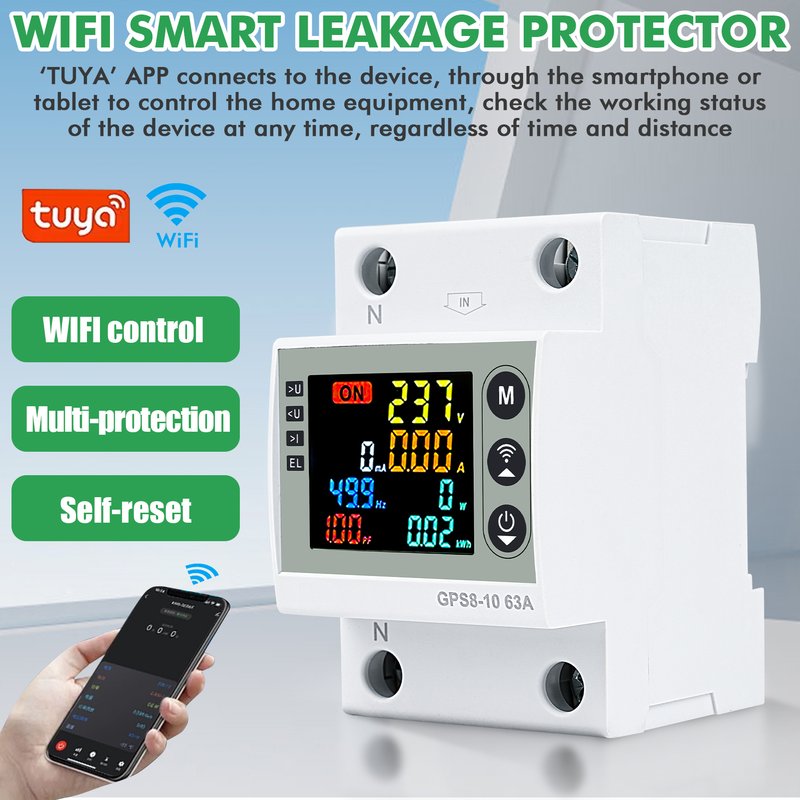

1. Intelligent control: The WiFi circuit breaker has a metering function. You can remotely control the on/off status of the device through the "TUYA" App, and monitor the real-time status of the load device to start a smart life.

2. Real-time monitoring: Mobile phone control can monitor the current, voltage, and power of the load device in real time, and can also record the power consumption of the year, month, day, hour and different time periods. You can view the power consumption of the load device more clearly and reduce energy loss.

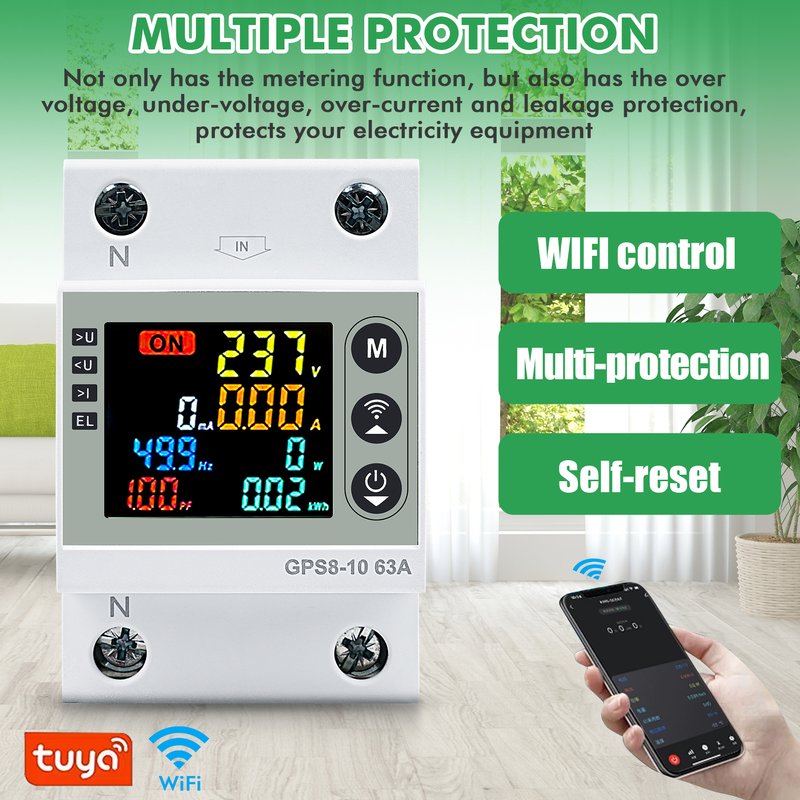

3. Multiple protections: This WiFi circuit breaker is equipped with a blue LED indicator light, and the operating status is clear at a glance. Intelligent protection supports over-voltage and under-voltage protection, overload protection, over-power protection, high temperature protection, over-current protection, etc. to ensure safe use.

4. Flame-retardant material: The WiFi circuit breaker is made of high-quality copper core with good conductivity and flame-retardant ABS material. It is resistant to high temperature, impact and corrosion, durable, and effectively improves safety during use.

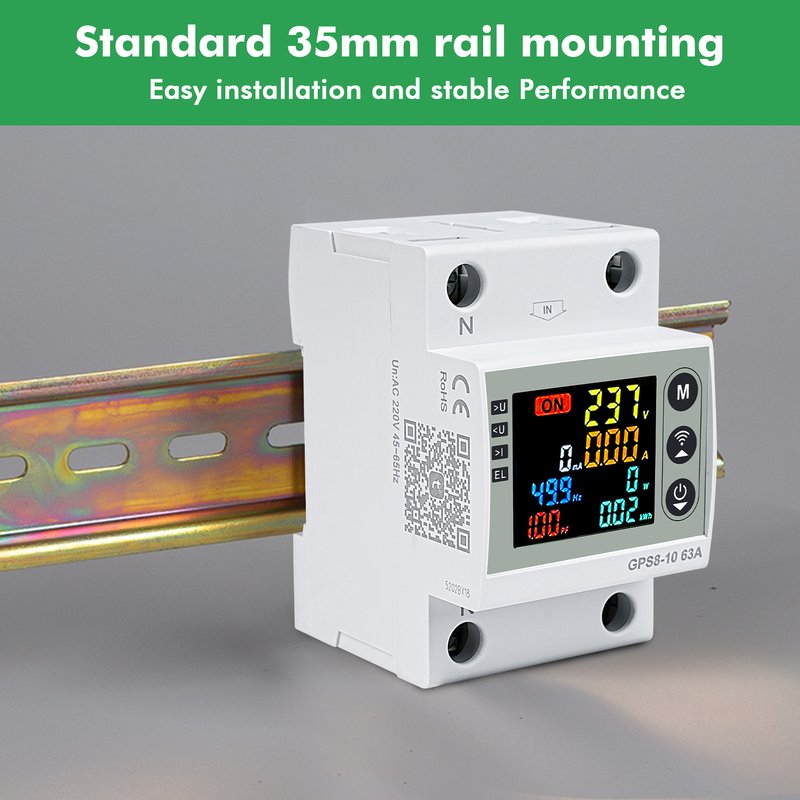

5. Wide application: WiFi circuit breakers are suitable for most scenarios with DIN rails and are widely used in power metering systems, schools, markets, home appliances, industries, laboratories and other places.

Specifications

Material: ABS

Rated working voltage range: 90V-240V

Number of poles: 1P+N (neutral pole cannot be opened or closed)

Rated current: 1-40A current adjustable

Maximum overload current: 63A (3-10s)

Communication method: Tuya WiFi

Working environment temperature: -25 C-70 C

Limit short-circuit capacity: 500A

Electrical life: >=10000

Mechanical life: >=100000

Close time: <20ms

Open time: <20ms

Overvoltage protection: 250V-300V (default value: 280V)

Undervoltage protection: 80V-200V (default value: 165V)

Overload protection: 1A-63A (default value: 50A)

High temperature protection: 0-120 C (default value: 80 C)

Overpower protection: 50W-11KW (default value: closed)

Notes

1. Due to the different monitor and light effect, the actual color of the item might be slightly different from the color showed on the pictures.

2. Please allow 1-3mm measuring deviation due to manual measurement. Thank you for your understanding!

Packing List

1*WiFi circuit breaker

1*Instruction manual (English)
