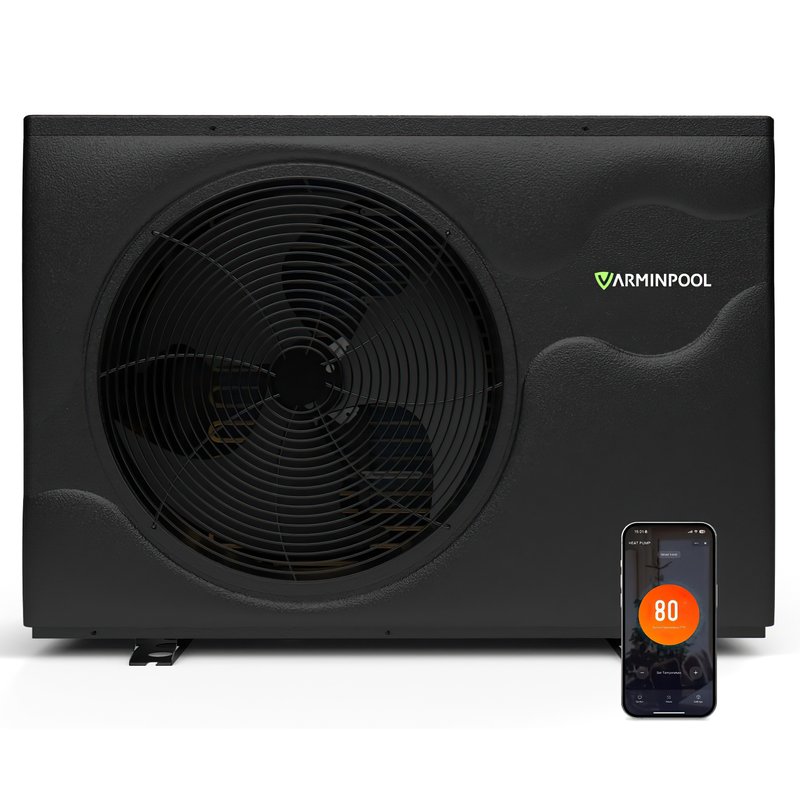

Varminpool 220v/60Hz Wi-Fi 15KW) — Heat Pump Machine
| Item No. | 1616-005617-05E0C |
| Category | Home & Equipment |
| English Name | Heat Pump Machine |
| Chinese Name | Varminpool空气源热泵泳池机 220v/60Hz 带 Wi-Fi 功能(变频15KW) |
| HS Code | 8419190000 |
| Material | Plastic, Iron |
| Application | Pool heating |
SWIMMING POOL HEAT PUMP
MODEL KSPF-015L1VUA1
Power Supply 208-230V~ 60Hz
Waterproof Grade IPX4
Electrical Shockproof I
Max power input 10750Btu/h
Max current (A) 14 .5 A
Refrigerant type/quantity R32/22 .9 Ozs
GWP / CO2eq 675/0 .4388
Heating Capacity(80°FAir 80°F Water ) 12900~5 1180 Btu/ h
Power Input(80°F Air 80°F Water ) 850~8530 Btu/ h
COP(80°F Air 80°F Water ) 6.60~ 12 .50
Heating Capacity(60°FAir 80°F Water ) 10230~42650 Btu/ h
Power Input (60°F Air 80°F Water ) 1330~9400 Btu/ h
COP(60°F Air 80°F Water ) 4 .90~7 .60
Maximum working pressure of heat exchanger 4 .4 MPa
Maximum working pressure of exhaust side 2 .5MPa
Maximum working pressure of suction side 4 .4 MPa
Running (Air) temperature range 5℉~110℉
Water flow (gpm) 24 .0
Pressure loss of water side : 15 kPa
Noise 43~55 dB (A )
Net weight (lbs) 101
Dimension L *W * H ( inch) 36.2*15.0*25.6
Factory Number (On The Bar Code )
Manufactured Date (On The Bar Code )
Packaging & Logistics
| Pieces per carton | 1 |
| Carton dimensions (L×W×H) | 103 × 73 × 48 cm |
| Carton weight | 55 kg |
