SCULPFUN S9 多功能激光器模组-蓝色

以下技术资料为英文原文。

Features

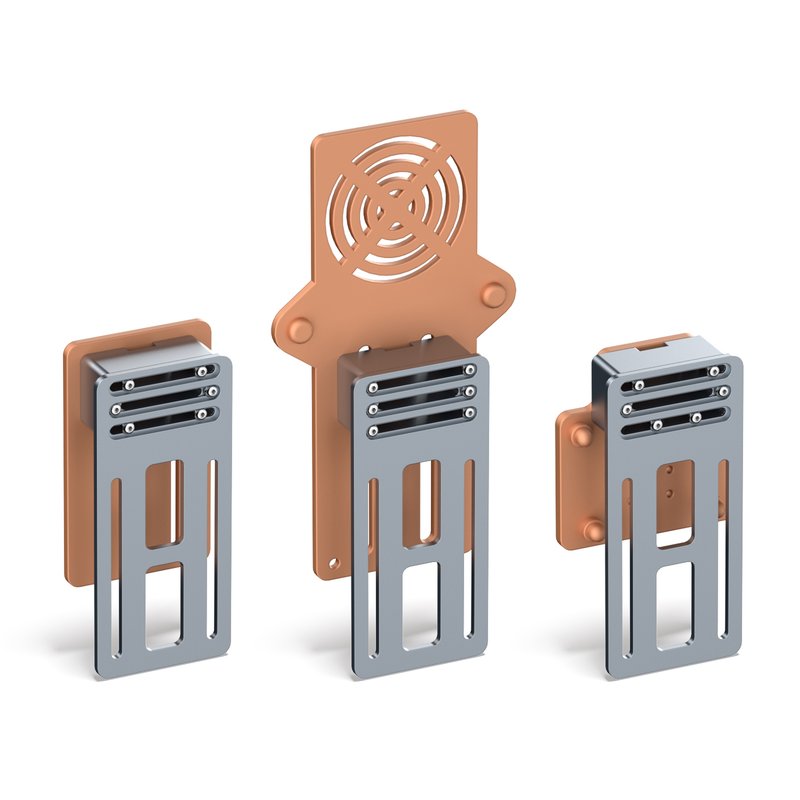

Highly compatible design: SCULPFUN laser module has a highly compatible structural connection device, which can be well adapted to different laser engraving machines, laser cutting machine, 3D printers, CNC milling machines, etc. It can be installed on a variety of brand machines, such as SCULPFUN, ATOMSTACK, ORTUR laser engraving machine, or other DIY type machines can be used.

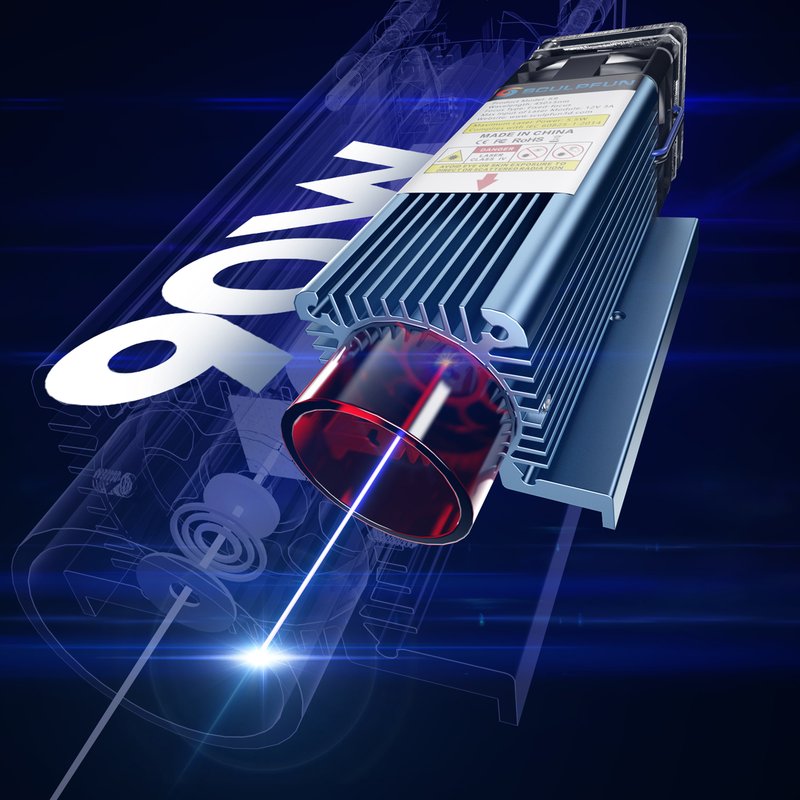

90W effect laser beam shaping technology: S9 adopts new 5.5W laser beam shaping technology diode laser, has a 0.06mm ultra-fine laser focus, has super cutting penetration and precision, it can cut 15mm thick wood, 10mm acrylic, engraved ceramic and stainless steel, which almost exceeds the effect of 90W CO2 laser.

Fast fixed focus design: S9 laser module has the fastest focus design on the market. It combines a fixed focus lens and a sliding design. You only need to slide the laser and tighten the screws to complete focusing. This makes the use of the laser very simple. Using it on different machines does not affect its sliding fixed focus function.

Ring-shaped eye protection design: The laser filter cover filters 98% of the ultraviolet light to the eyes. You and the people around you do not need to wear goggles to watch the laser engraving from all angles. At the same time, it can prevent animals from catching the laser spot.

General 12V/PWM modulation board: It uses a common 12V/PWM modulation board, which can be adapted to common GRBL or CNC motherboards. You can view product pictures for details.

Specification

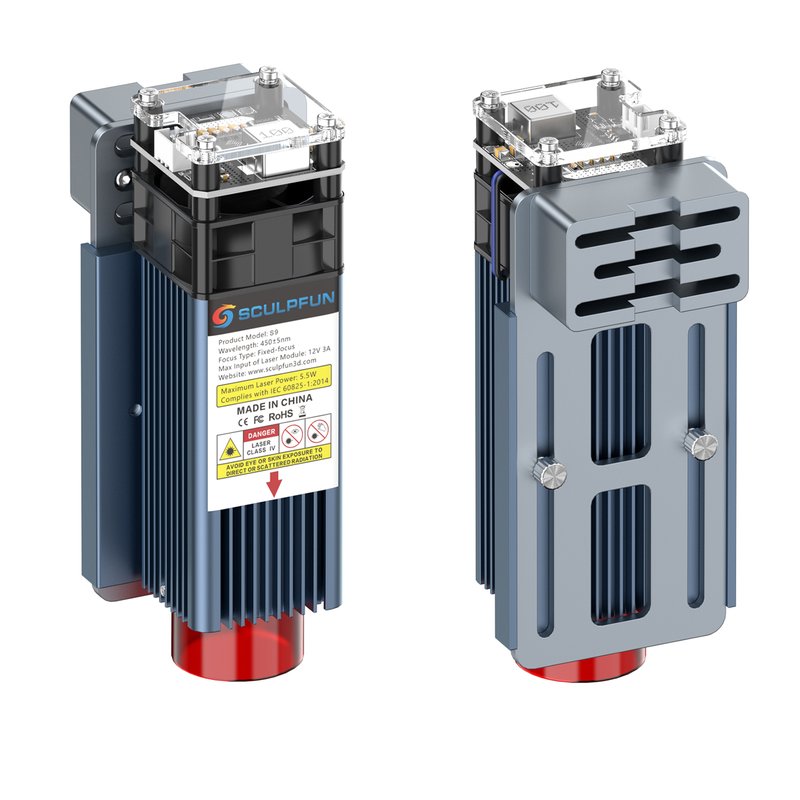

Model: SCULPFUN S9 Laser Module

Carveable/Cutting material:

Carving material: wood, bamboo, cardboard, plastic, leather, PCB, alumina, stainless steel, black metal, ceramic

Cutting material: thin wood, acrylic board, cardboard, non-woven fabric, bamboo, some plastic board

Laser effect power: 90W (cutting effect similar to 90W CO2 laser)

Laser output power: 5.5-6W (light energy)

Laser wave length 455+/-5nm

Laser type and fixed focus method: fixed focus laser, fixed focus through 20mm measuring column

Laser protective cover: ring-shaped violet filter cover protects the user's eyes and prevents animals, etc. from contacting the laser spot

Laser shell material: aluminum alloy

Laser circuit board parameters:

Circuit board size: 40*40mm / 1.6*1.6in

Circuit board: 12V/PWM modulation board

Input voltage: 12V

Max input of laser module: 12V 3A

Wire rod: HY2.0, 3Pin terminal (3-core cable, A: PWM +, B: GND, C: VCC )

Fan: 12V 0.15A 4020 fan

Fan speed: 10000 rpm

Operating temperature: -20 C to 70 C

Precautions:

For detailed machine instructions, please refer to the manual for parameter settings.

Before installing and using the laser, you should understand the adaptability and the maximum input voltage and current to avoid damage to the laser.

Do not touch the laser with your hands, otherwise you may burn your hands.

Please avoid strong impact on the machine.

It is forbidden for children under 14 years old to use this product. Children over 14 years old need adult supervision.

Do not apply the laser directly to any specular reflection object, which may cause injury to the operator or burn the laser.

Note:

Due to the different monitor and light effect, the actual color of the item might be slightly different from the color showed on the pictures. Thank you!

Please allow 1-3mm measuring deviation due to manual measurement.

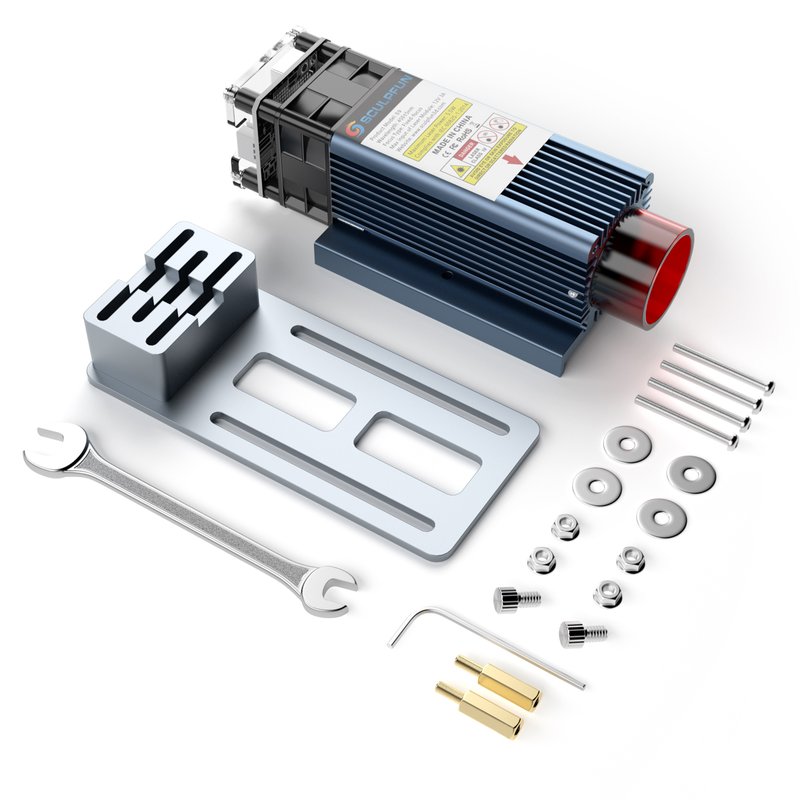

Packing list

1 x Laser head

1 x Multifunctional connector

1 x 20mm Measuring column

1 x Screws and tool kits

包装与物流

每箱件数	32
外箱尺寸 (长×宽×高)	60 × 34 × 40 cm
外箱重量	16.85 kg
