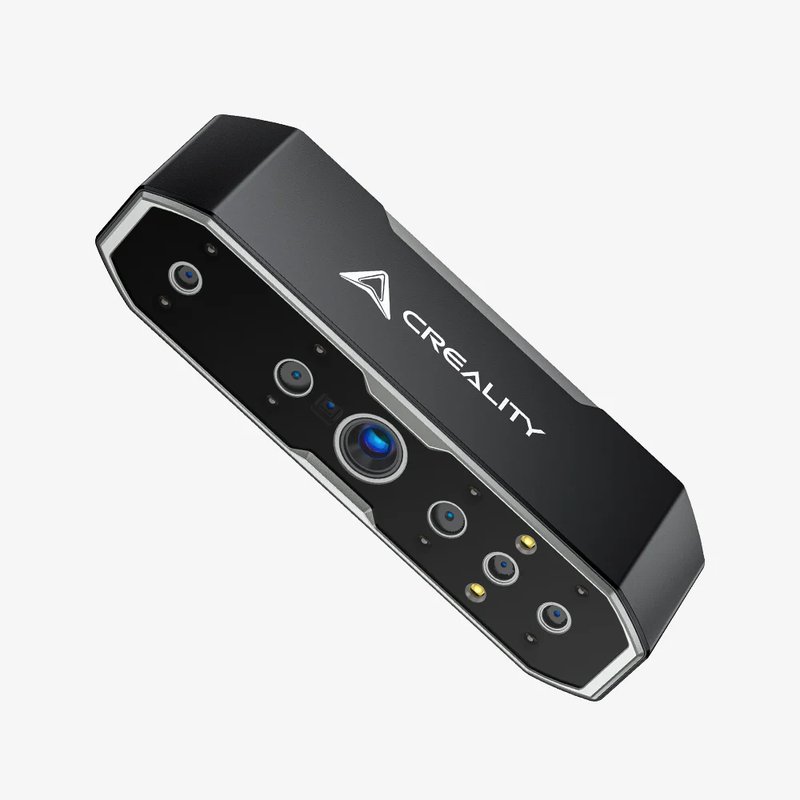

CR-Scan Otter_四目扫描仪

以下技术资料为英文原文。

Features

lnnovative four-lens stereo vision.

Proficient in handling both large and small scans. Two sets of dual lenses, catering to details and various sizes. A set of long-focal dual lenses for scanning small objects, providing richer details;

Up to 0.02mm accuracy.

Scan black/metal objects without spraying.

Objects between 10-2000mm.

Specifications

Accuracy: Up to 0.02mm @ 60mm

3D Resolution: 0.05-2mm

Scanning Speed: Up to 20fps

Min. Scan Volume: 10mm x 10mm x 10mm

Single Capture Range: Max. 1350x840mm@1000mm

Technology: Infrared structured light

Working Distance: 110mm-1000mm

Color Mapping: Yes

Alignment Modes: Geometry/Marker/Texture

Output Format: OBJ/STL/PLY

IMU: Yes

Color Supplemental Light: 2 white LEDS

Marker Recognition Enhancement: 8 infrared LEDs

Laser Safety: Class I (eye safe)

System Support: Windows/macOS(*Wireless scanning accessories are required for iPhone iOS/Android)

Buttons: Touch

Audible prompt: Yes

Calibration board: Yes

Operating Temperature: -10 C to 40 C

Operating Humidity: 0-90% RH

Input Power: 5V3A

Data Interface: Type C/USB3.0/USB2.0

Device Dimensions: 165mmx37mmx59mm

Device Weight: 390g

Notes

Due to the different monitor and light effect, the actual color of the item might be slightly different from the color showed on the pictures.

Please allow 1-3cm measuring deviation due to manual measurement. Thank you for your understanding!

Packing List

1 X 3D Scanner

包装与物流

每箱件数	10
外箱尺寸 (长×宽×高)	50 × 46 × 29 cm
外箱重量	19.57 kg
