SCULPFUN CAM500 完美适配Lightburn 精准定位 图像追踪

以下技术资料为英文原文。

Features

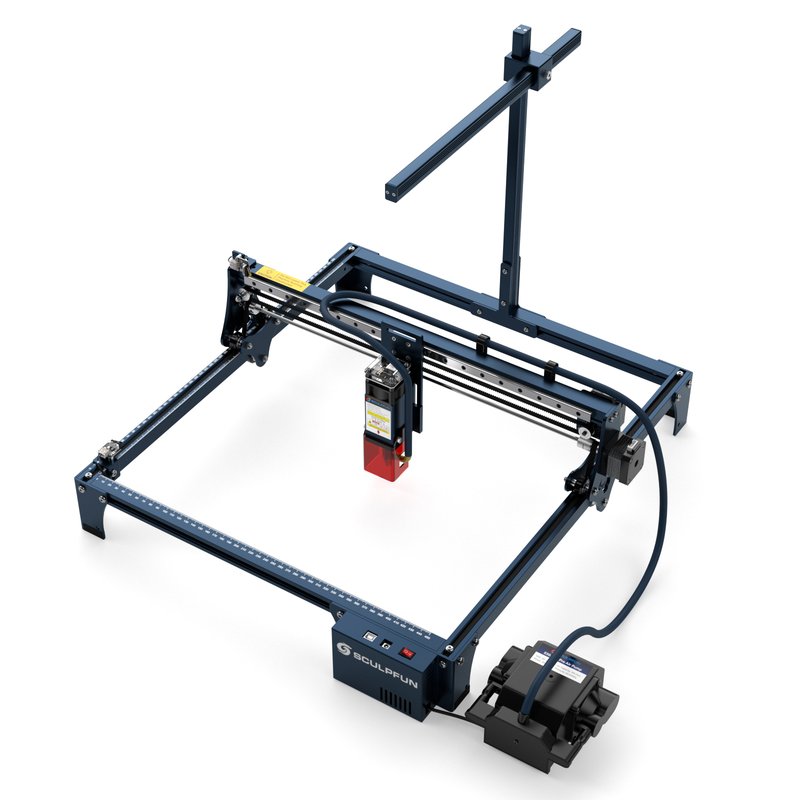

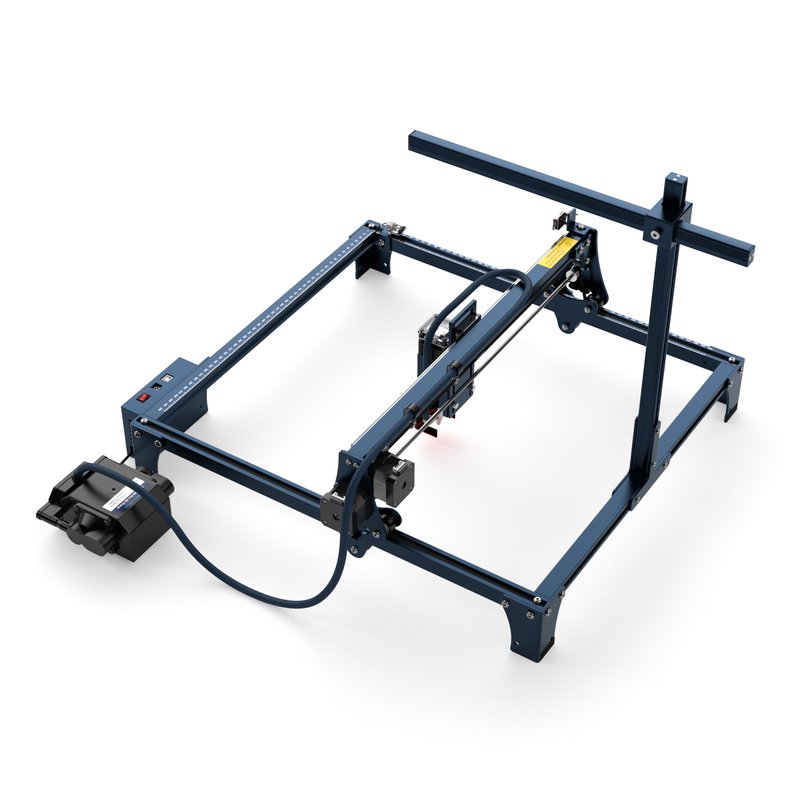

1. Sculpfun official camera: The installation method and camera range of the camera are perfectly suitable for SCULPFUN laser engraving machines, including S6, S9, S10, S30/S30 Ultra series. The installation is very tight and the camera is clear.

2. Accurate positioning of material position: perfectly adapted to the CAM function of Lightburn software, the position of the engraving is identified through the camera, and the positioning error is less than 1mm; Tips: The height of the camera from the engraving position is recommended: 325mm. After the camera is aligned, the engraving object should be as close to the center of the camera as possible. In the 400*400mm area, the accuracy will attenuate as it moves away from the center point.

3. Engraving position control: Through the Sculpfun CAM500 camera, the pattern can be moved to a certain position of the engraved object in the screen in lightburn, and the laser will engrave the pattern at this position after the setting is completed.

4. Image tracking: Sculpfun CAM500 camera can be used with lightburn to identify and extract the pattern on the surface of the object with one click (such as T-shirt pattern, children's hand-painted pattern, etc.), and form an engraving file. This is very handy for getting vector files quickly.

5. Batch engraving: Through the laser Lightburn camera, multiple engraving objects can be added to complete different independent tasks at one time. The laser will automatically find the preset engraving positions one by one and start working, improving work efficiency.

6. Sculpture screen recording: use the Sculpfun CAM500 camera to shoot and record the whole process of the completion of the work, which is convenient for you to display and share with your friends.

7. Industrial camera: industrial camera specially designed for lightburn, real 500W pixels, more accurate and clearer recognition;

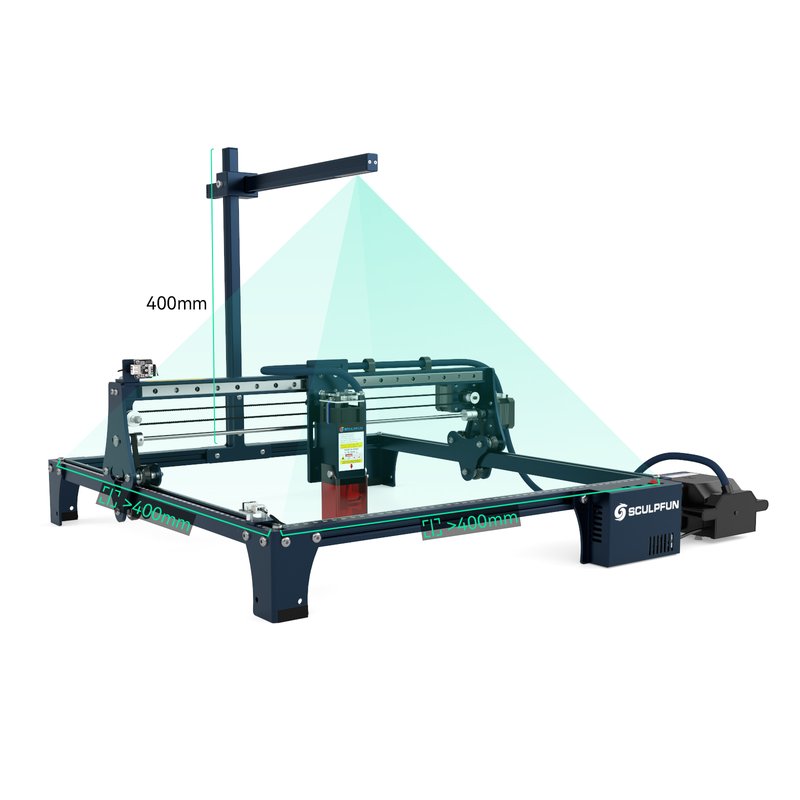

8. Large positioning area: 120° wide-angle lens, covering 400*400mm working area;

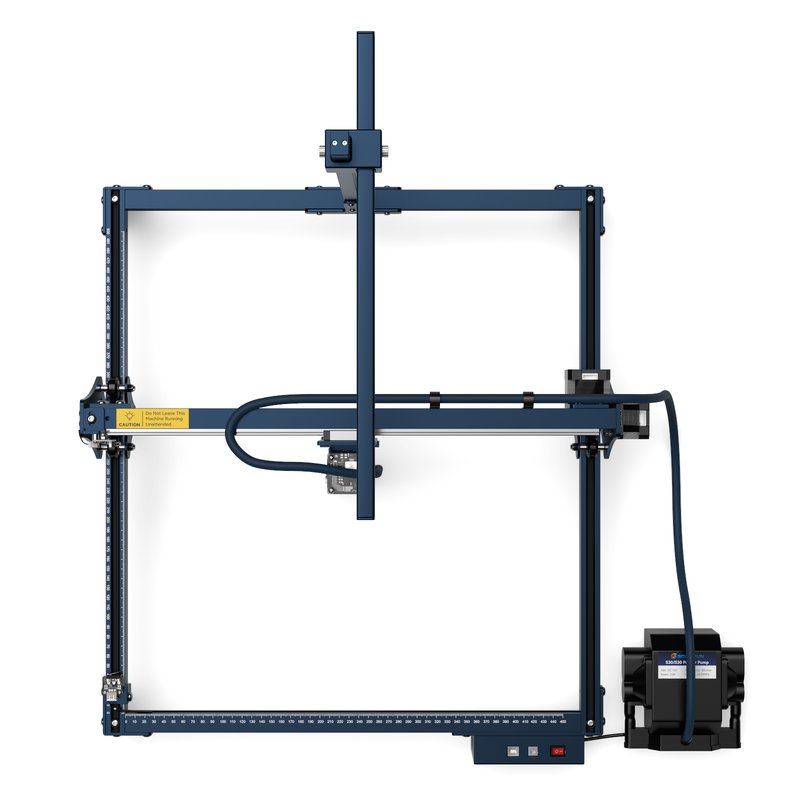

9. The bracket structure is widely applicable: Sculpfun CAM500 camera bracket has two fixing structures, one is T-shaped fixing clip, which is suitable for all Sculpfun models and almost all V-slot structure engraving machines; the other is a U-shaped fixing clip suitable for U-beam machines such as xTool;

(All SCULPFUN models on sale are applicable, including S6, S6 pro, S9, S10, S30/S30 Ultra series. Note: the extra extension shafts purchased are not applicable. Other specific applicable models, D1PRO, falcon2, LM2 PRO S2, 20PRO 20S , 55, JL3, 3 MAX V2.)

Specifications

Product model: CAM500

Bracket material: Aluminum

Suggested height between the camera and the engraving position: 325mm

Best working range: 400*400mm

Product size (horizontal bar and vertical bar are the same): 400*15*20mm (Note: There may be errors in manual measurement)

Product packaging weight: 0.8KG

Product packaging size (length*width*height): 462*180*55mm

Applicable system: win7/win10/win11/mac (note: for better product experience, it is recommended to use win7 or above systems)

Camera parameters:

Pixels: 5 million

Color image sensor: 1/4-inch CMOS

Maximum resolution: 2592*1944

Pixel size: 1.4um*1.4um

Focal length: 1.79mm

Focusing method: fixed focus

Fixed focus distance: 325mm

Viewing angle width: 120°

Aperture: F2.4

USB interface: USB 2.0

Notes

Due to the different monitor and light effect, the actual color of the item might be slightly different from the color showed on the pictures.

Please allow 1-3mm measuring deviation due to manual measurement. Thank you for your understanding!

Packing List

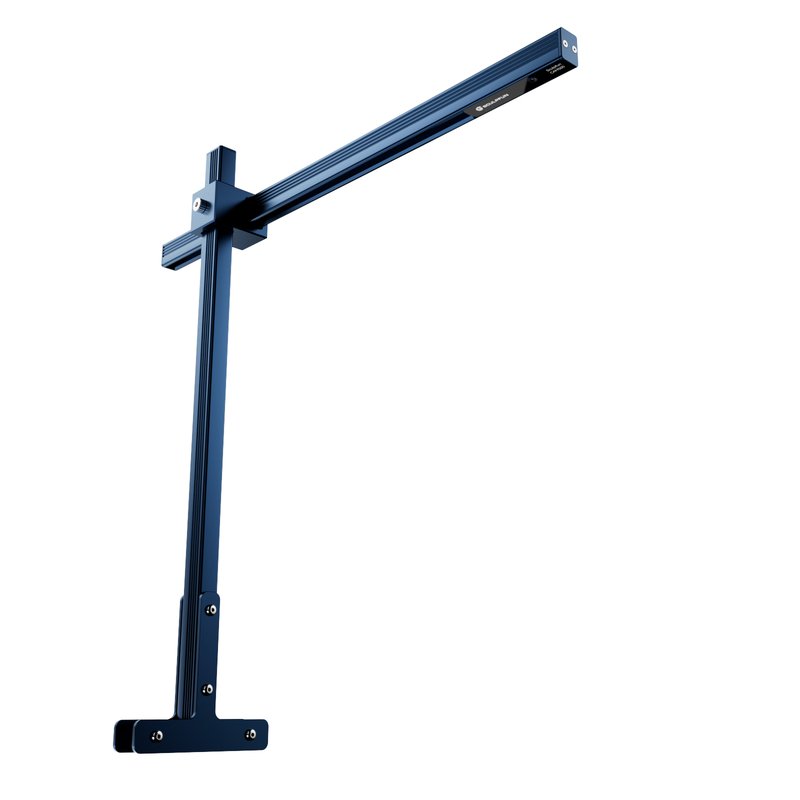

1 x Camera crossbar assembly

1 x Camera vertical rod

1 x T-clamp assembly

1 x Camera slider

1 x U-clamp assembly

1 x Screw pack

4 x Basswood board

3 x A5 calibration cards

1 x Instruction manual

1 x Soft ruler
