【出口】450柱塞式喷涂机 220v 定制商标纸盒

以下技术资料为英文原文。

Features

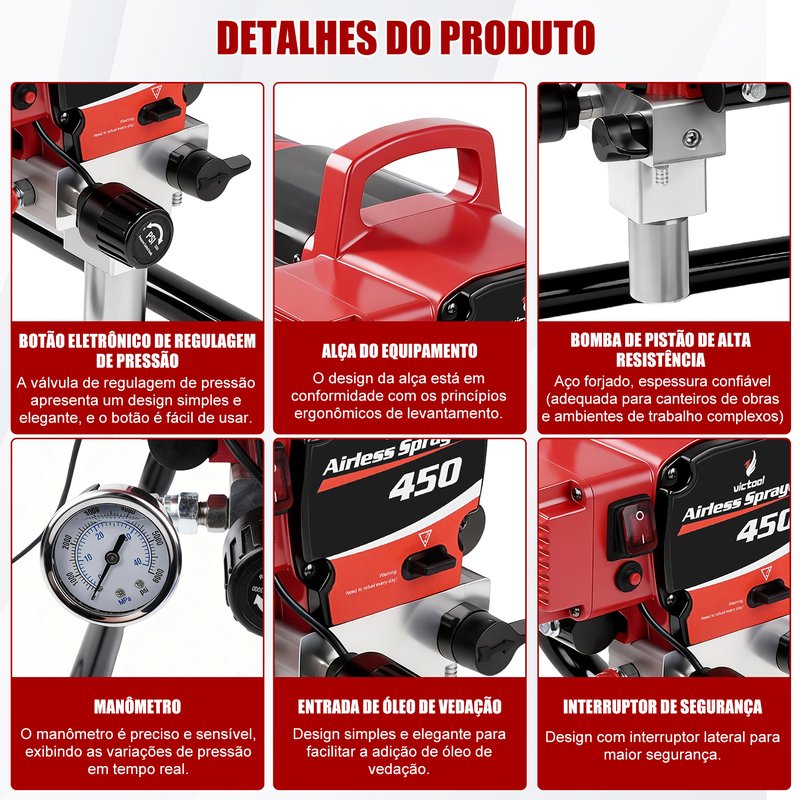

1. Flow rate adjustment, high pressure, uniform spraying, quick assembly and disassembly, with pressure gauge.

2. Simple to operate, easy to carry, and low noise.

3. Excellent surface quality: one-time film formation, smooth spraying, uniform coating, no brush marks or particles.

4. High permeability, increasing the mechanical biting force with the wall, better solving problems such as coating bubbles and cracks.

5. The paint has a small rebound, which greatly improves working conditions and is more beneficial to the health of construction workers.

6. Widely used in steel surface structures, epoxy flooring, paint construction, ceramic tile industry water, home decoration construction, construction industry, ship painting construction, silicon mud algae spraying construction, mold oil spraying, etc.

Specifications

Voltage: 220V

Frequency: 50Hz

Motor power: 1800W

Maximum working pressure: 22MPA

Maximum flow rate: 2.2L/min

Maximum nozzle supported: 0.021in

Output connector: 1/4 inch

450 Spraying machine maximum nozzle support: 621. It is not recommended to use dual guns, as dual guns should come with very small nozzles

Motor: Pure copper brushed

Water pipe length: 8m

Power cord length: 2m

Features: Spray gun stops, machine stops

Suggestion: Generally, the carbon brush needs to be replaced after 500 hours

Notes

Due to the different monitor and light effect, the actual color of the item might be slightly different from the color showed on the pictures.

Please allow 1-3cm measuring deviation due to manual measurement. Thank you for your understanding!

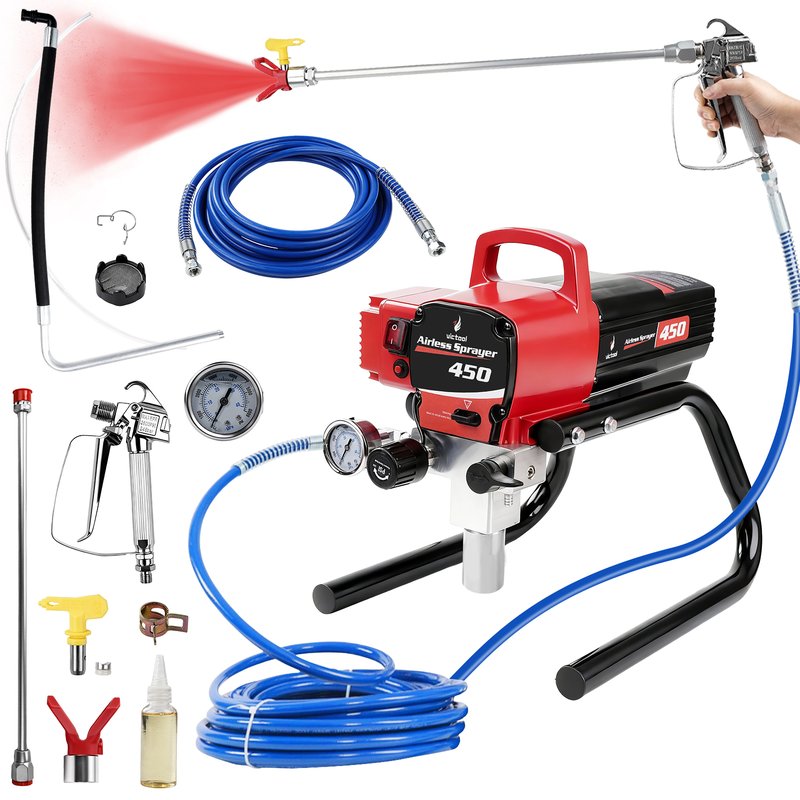

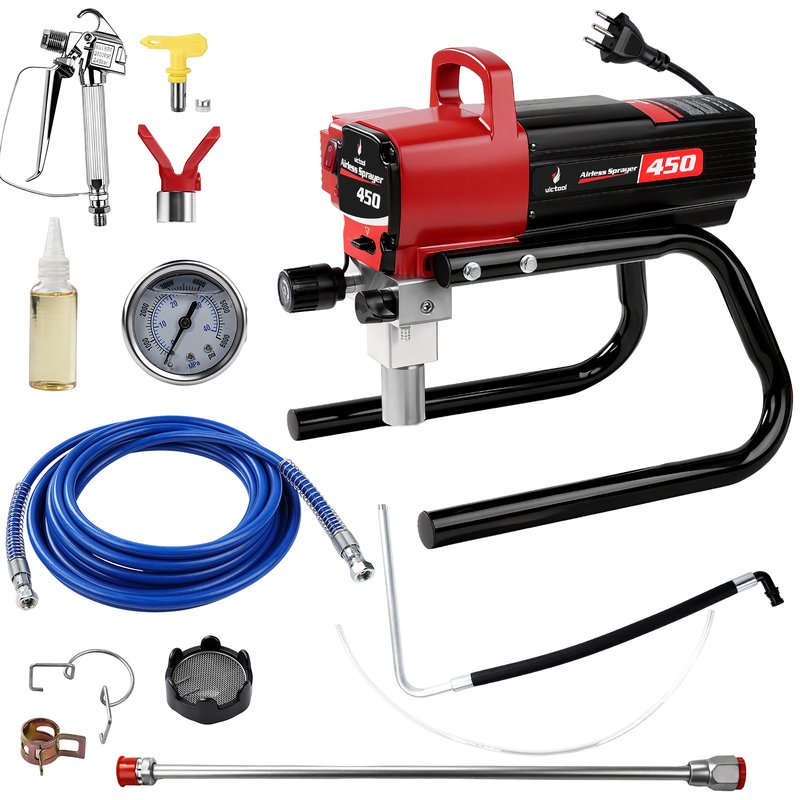

Packing List

Spray gun*1

Nozzle*1

Filter screen*1 (on the suction pipe)

50cm Extension rod*1

Suction pipe*1

Pressure gauge*1

8-meter High-pressure pipe*1

Spray gun*1

Portuguese instruction manual*1
