SCULPFUN S30 Pro激光模组10W

以下技术资料为英文原文。

Features

1. Built-in high-pressure air-assisted nozzle: S30 Pro is equipped with advanced high-pressure air-assisted metal nozzle, which can generate high-pressure airflow under the air pump, greatly improving cutting efficiency, and the cutting speed is more than 5 times faster than that without air assist. The powerful airflow blows away the residue, making the cutting surface very clean.

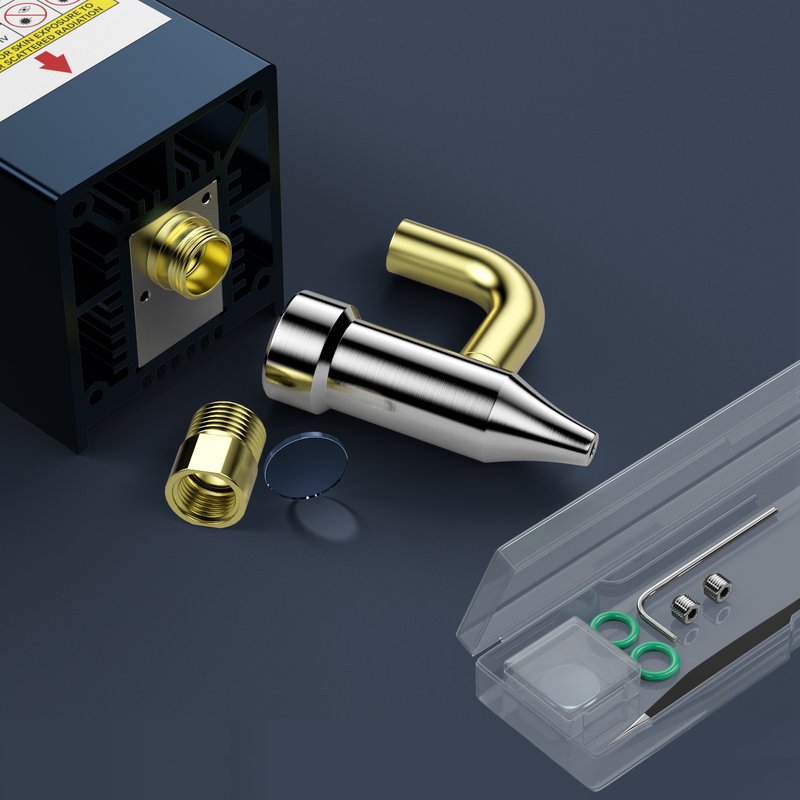

2. Replaceable protective lens: S30 Pro laser adopts innovative replaceable lens, which greatly improves the service life of the laser, which is more than 10 times longer than other general lasers. When the lens is damaged or after long-term use, the lens can be replaced to restore its cutting power. One free lens is included in the package with purchase, lenses are very cheap and can be easily purchased from SCULPFUN.

3. High compatibility design: SCULPFUN laser module has a clever and highly compatible structural connection device, which can be well adapted to different laser engraving machines, laser cutting machines, 3D printers, CNC milling machines, etc. It can be installed on various brands of machines, such as SCULPFUN S9/S6pro/S6, ATOMSTACK A5/A5Pro, ORTUR (12V version) laser engraving machine, or other DIY type machines.

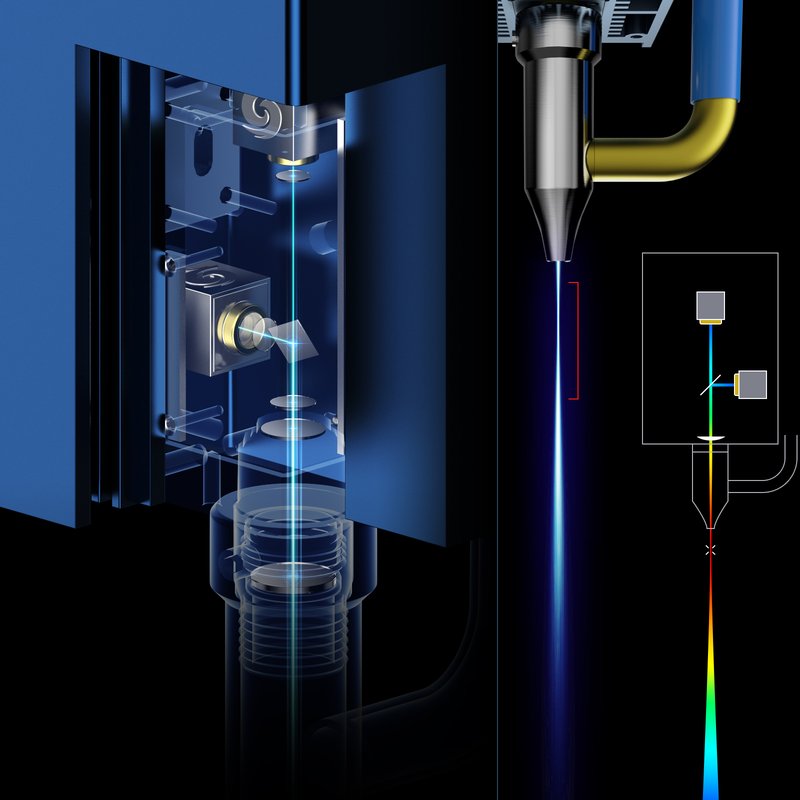

4. Ultra-fine and high-density 10W laser shaping technology: The laser power of S30 Pro is increased to 10W, which is twice that of S9. But it has the same 0.08mm focus ultra-fine laser beam as the S9, which means that the S30 Pro has a higher energy density, stronger cutting penetration and engraving capabilities.

5. Faster, stronger and cleaner: Combining advanced high-speed air assist and 10W high energy density laser, S30 Pro shows wood cutting performance comparable to industrial grade: First, the cutting efficiency is greatly improved and the cutting is faster; second, the cutting penetration is stronger, and many high-density woods can be cut; third, the cutting surface is cleaner, and the powerful airflow blows away the residue, so that there is no stain on the surface of the cutting object.

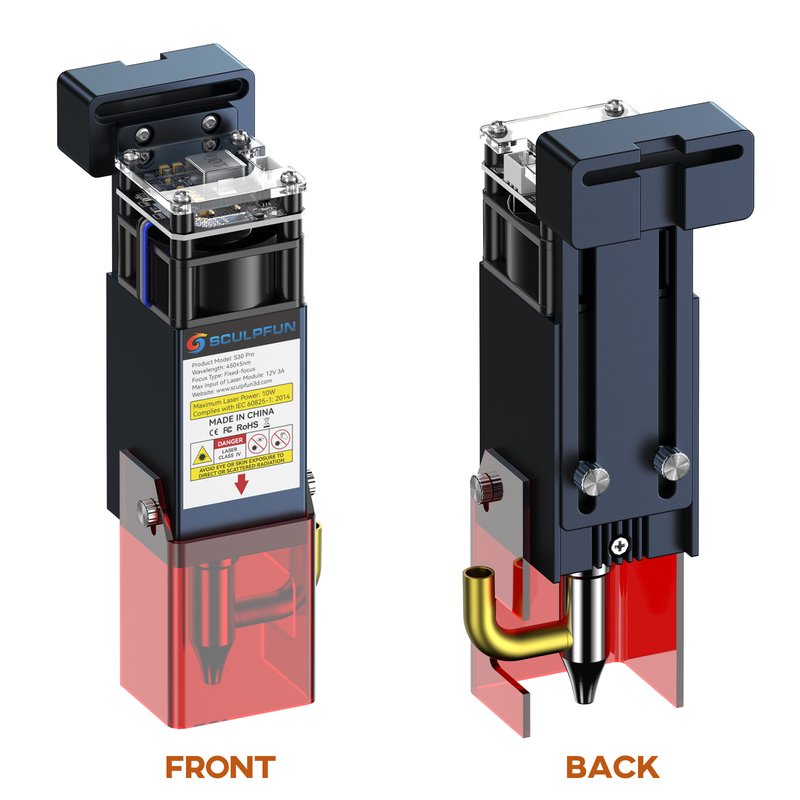

6. Detachable laser eye shield: S30 Pro is equipped with a detachable eye shield, which will not be dazzling even if you don't wear glasses. In addition, you can easily disassemble it if you don't need it.

7. Universal 12V/PWM modulation board: It uses a common 12V/PWM modulation board, which can be adapted to common GRBL or CNC motherboards. You can view the product pictures for details.

How to judge whether the S30 Pro laser is suitable?

-You need to pay attention to the S30 Pro laser input voltage is 12V, S30 Pro is a 3pin interface, you can check the detailed picture.

Specifications

Applicable models: SCULPFUN S9/S6pro/S6, ATOMSTACK A5/A5Pro, ORTUR(12V Version), ELEKSMAKER and other laser engraving machines, or DIY 3D printers, CNC machine tools.

Engraving/cutting materials:

Carving material: all kinds of wood (including walnut, cherry wood and other high-density wood), MDF, bamboo, cardboard, plastic, leather, PCB board, aluminum oxide, 304 stainless steel, ceramic, dark stone

Cutting material: all kinds of wood (including walnut, cherry wood and other high-density wood), MDF, acrylic board, cardboard, non-woven fabric, bamboo, leather, some plastic boards, PCB boards

Laser output power: 10W (light energy)

Air hose inner diameter: 7.5mm/0.29" (recommended to use 30L/min, 0.03Mpa air compressor, recommended air outlet interface outer diameter of 8mm/0.31")

Laser wavelength: 455+/-5nm

Laser type and fixed focus method: Fixed focus laser, fixed focus through 50mm measuring column

Laser protective cover: Equipped with a detachable laser protective cover to protect the eyes. You can adjust it up and down, or remove the eye shield.

Laser shell material: aluminum alloy

Laser circuit board parameters:

Circuit board size: 40*40mm

Circuit board: 12V/PWM modulation board

Input voltage: 12V

Max input of laser module: 12V 5A

Wire Rod: HY2.0, 3Pin terminal (3-core cable, A: PWM +, B: GND, C: VCC ).

Fan: 12V 0.15A 4020 fan

Fan speed: 15000rpm

Operating temperature: -20 C to 70 C

Packing weight: 0.6kg

Packing size: 305*150*125mm

Notes

Due to the different monitor and light effect, the actual color of the item might be slightly different from the color showed on the pictures.

Please allow 1-3mm measuring deviation due to manual measurement. Thank you for your understanding!

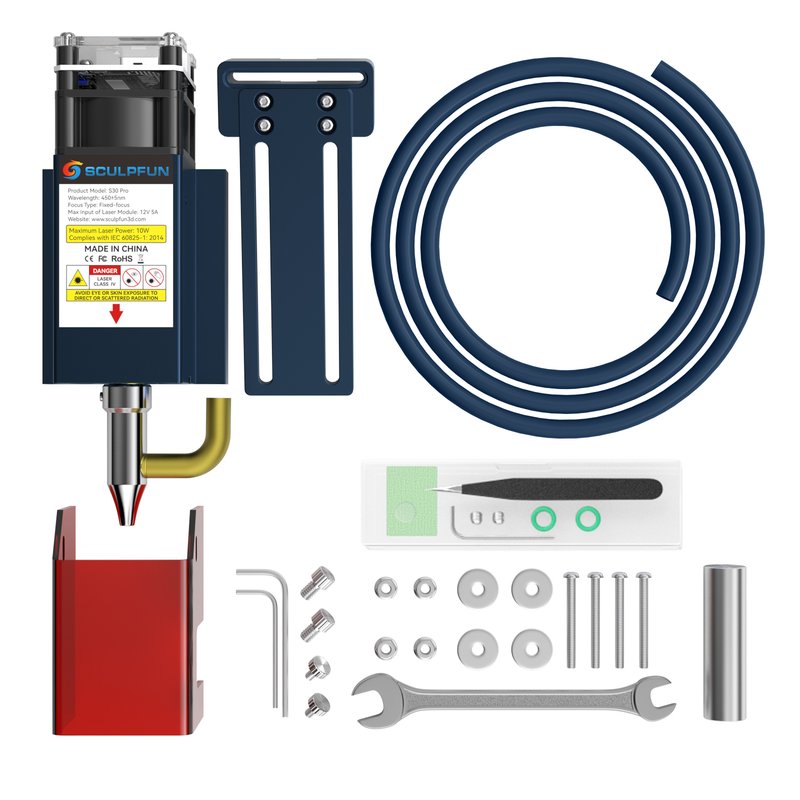

Packing List

7.5mm inner diameter hose*1

Acrylic protective cover*1

S30 Pro Laser head*1

Multi-function connector*1

50mm Measuring column*1

Screw and tool kit*1
