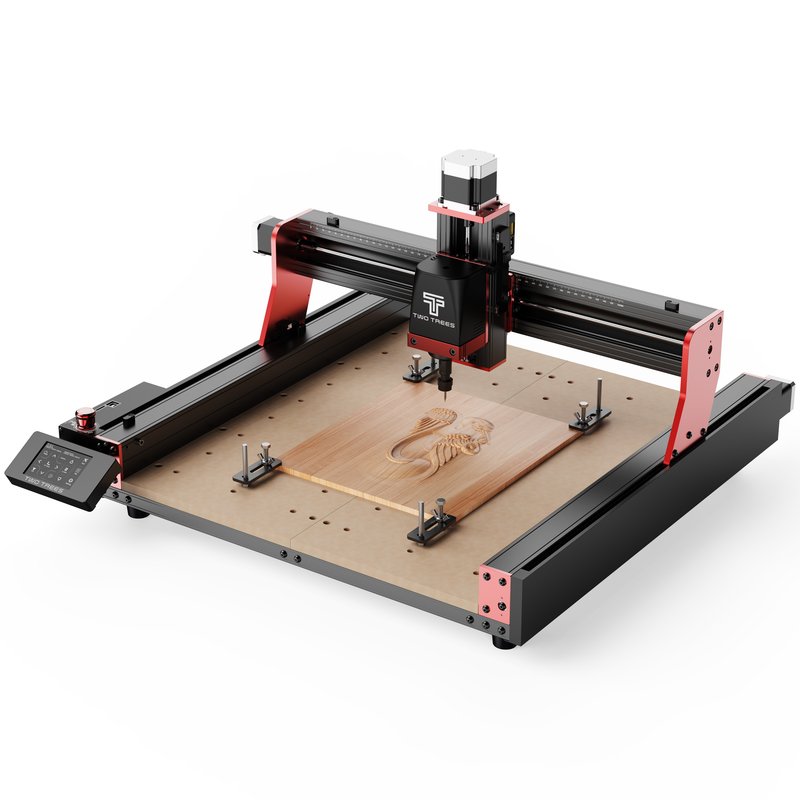

TwoTrees TTC 450 Pro CNC (2025 110-240V — Engraving Machine

Features

High-speed spindle: The standard 80W spindle reaches 8000rpm, the upgraded 500W spindle reaches 12000rpm, the heat dissipation is quiet and fast, and the engraving is smoother.

Large working area: Large working area 460x460x80mm, 70% pre-assembled, meeting most engraving needs, commercial batch manufacturing and artistic design, unlimited engraving.

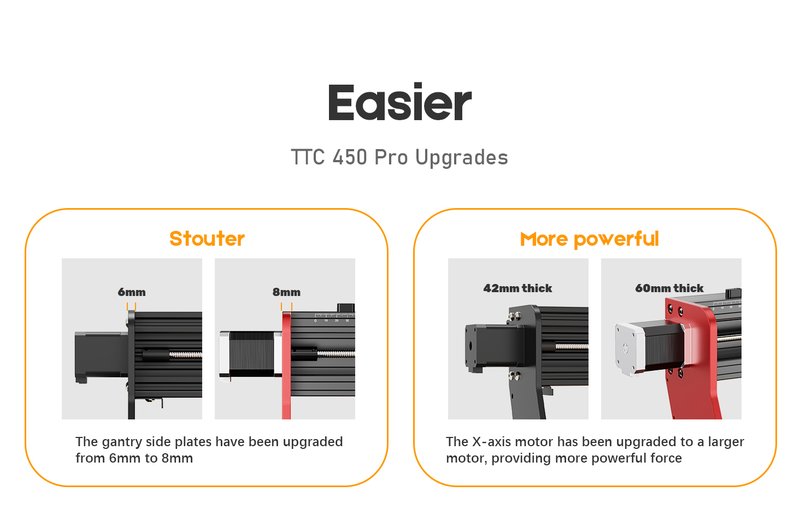

Sturdy and durable structure: The metal frame is equipped with high-quality screw rods for smoother and more stable operation.

Support offline engraving: easy connection and control, supports operation via WiFi-2.4GHz, TF card and USB connection.

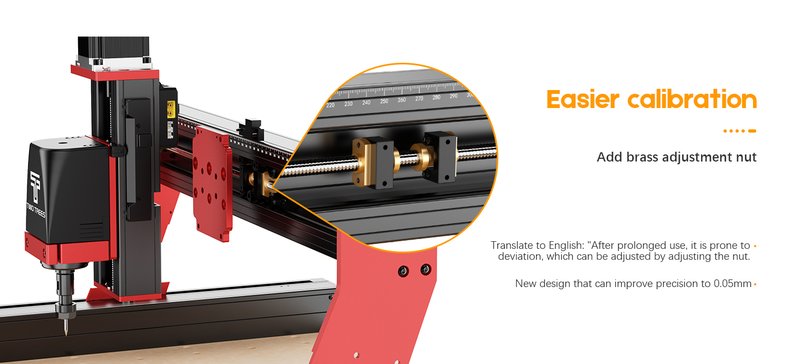

Accurate to the millimeter: limit switches on all axes, engraving accuracy of 0.05mm, instant stop switch, safe operation.

Wide range of applications: Create 2D and 3D works on a variety of materials, including plastics, acrylics, industrial plastics, metals, and more.

Specifications

Model: TTC450 pro

Color: black+red

Machine material: aluminum profile + plastic

Lead screw size and type: T8 2mm pitch, 4mm lead 5 start extreme lead screw

Height adjustment method: lifting module adjustment (automatic)

Machine size: 742*686*413mm

Engraving size: 460*460*80mm

XY axis positioning accuracy: 0.05mm

Stepper motor: A4988, 1.3A/17HS8401S, NEMA23 20mN.m

Engraving accuracy: +/-0.05mm

Engraving speed: 800mm/min

Spindle: 80W, 8000 rpm/500W, 12000 rpm

Engraving method: USB connection/APP/wireless computer web client/offline

Engraving materials: plastic, soft aluminum, wood, acrylic, PVC, PVB and other soft materials

Software recognition format: NC, DXF, BMP, JPG, PNG, GCODE

Continuous working time: <=6 hours

Engraving mode: graphic engraving, file engraving, scan engraving, outline engraving, pixel engraving

Control panel: TWOTREES CMC KIT V1.3

Motherboard language: Chinese, English, Italian, French, German, Russian, Portuguese, Spanish, Japanese, Korean, Turkish

Packing size: 760*740*213mm

Packing weight: 21KG

Power supply: 24V 5A 120W

Operating system: Windows, MAC

Support software:

Laser GRBL: open source free software, supports Win XP/Win 7/Win 8/Win 10 systems

LightBurn: paid software, supports Win XP/Win 7/Win 8/Win 11 systems, Mac system

Working environment: temperature 0-40 degrees Celsius, humidity 20-60%RH

Notes

Due to the different monitor and light effect, the actual color of the item might be slightly different from the color showed on the pictures.

Please allow 1-3mm measuring deviation due to manual measurement. Thank you for your understanding!

Packing List

1*TTC450 Pro Laser Engraver
