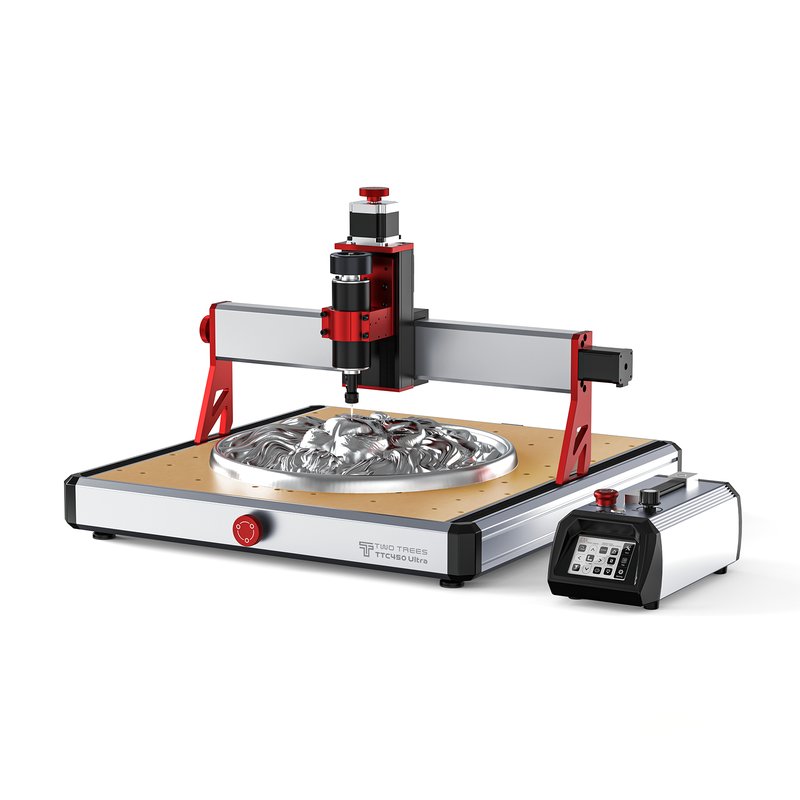

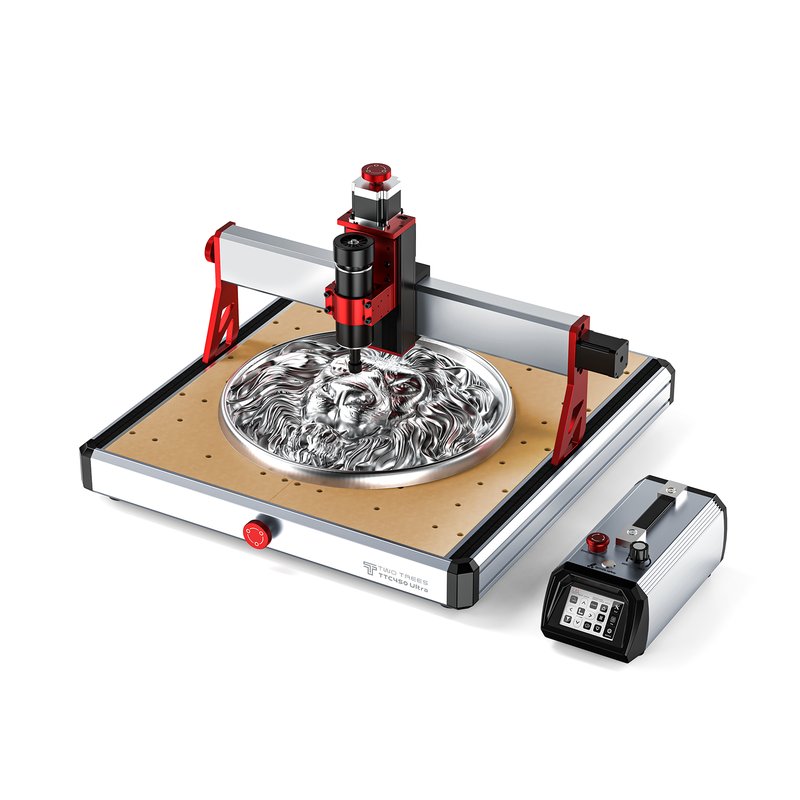

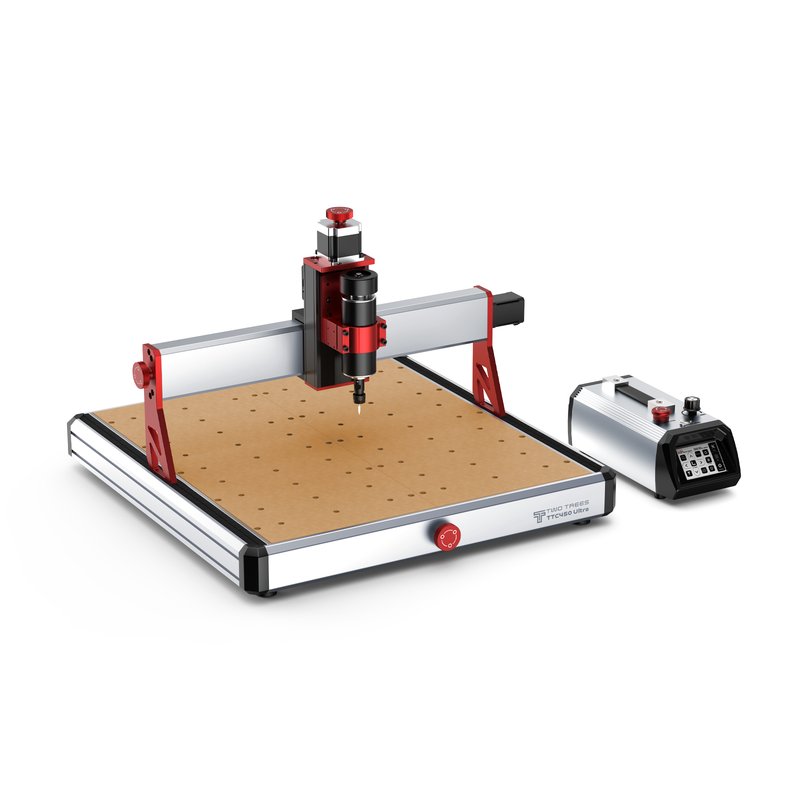

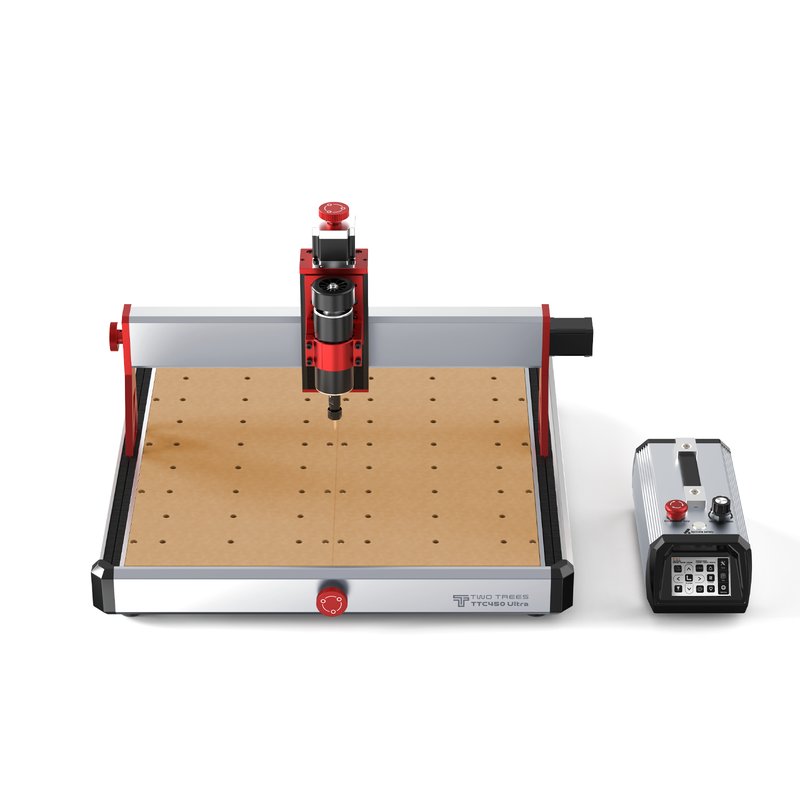

Twotrees TTC 450 ultra 500W cnc — Engraving Machine

Model: TTC450 ULTRA

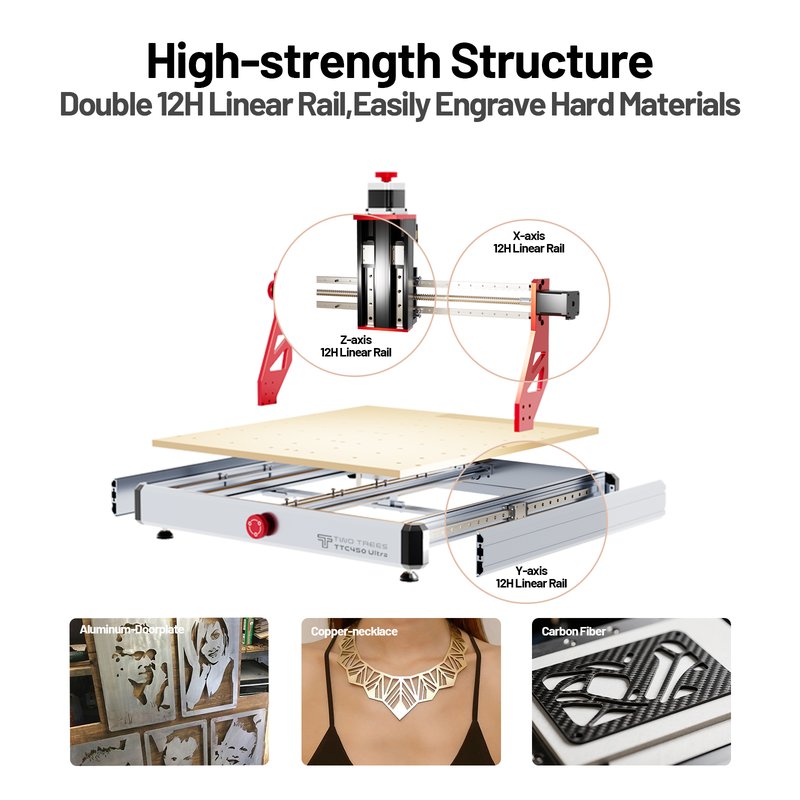

Main materials: aluminum alloy+stainless steel+injection molded parts

Net weight: 19kg

Control box size: 300mm x 137mm x 131mm (11.81 inches x 5.39 inches x 5.16 inches)

Equipment size: 745mm x 660mm x 473mm (29.33 inches x 25.98 inches x 18.62 inches)

Scope of work: 460mm x 460mm x 100mm (18.11 inches x 18.11 inches x 3.94 inches)

Supporting tool diameter: 0.5mm-7mm (with ER11 chuck)

Compatible carving materials: plywood, medium density fiberboard, solid wood, acrylic, carbon fiber, aluminum alloy, copper, stainless steel

Packaging size: 685x610x190mm

Power supply: 216W dual switch power supply

Control board input voltage: 24V

Maximum power consumption: 80W

Standby power consumption: 12.6W

Touch screen: 3.5-inch IPS capacitive touch color screen (resolution 480 * 320)

Firmware type: GRBL open-source firmware, supports CNC and laser modes, no need to flash firmware

Motion structure type: XYZ

X/Y axis positioning accuracy: 0.01mm

Z-axis positioning accuracy: 0.0025mm

Carving accuracy: 100 +/- 0.05mm

Maximum carving speed: 3000mm/min

Maximum acceleration: 500mm/s ²

Spindle motor: 500W (standard)

Spindle speed: 8000-30000 revolutions per minute, depending on installation conditions

Tool size: Supports tools with diameters ranging from 0.5mm to 7mm, depending on the inner hole of the ER11 chuck

Carving layer height: Non metallic: 0.1mm-20mm; Metal: 0.1mm-0.2mm

Programming software: VCarve, Fusion360, EASEL, Carveco Maker, FlatCAM, Camlab, Millmage, Carbide3D And all Vectric software

Supported systems: macOS, Windows, Linux

Software languages: Chinese, English, Spanish, German, French, Russian, Portuguese, Italian, Japanese, Korean, Turkish

Supported program formats:. nc,. Gcode

Safety certification: CE - EMC/CE - LVD/CE - MD/CE - RED/ROHS/FCC - Sdoc/FCC - ID

Best carving temperature: 0 ° -40 ° C
