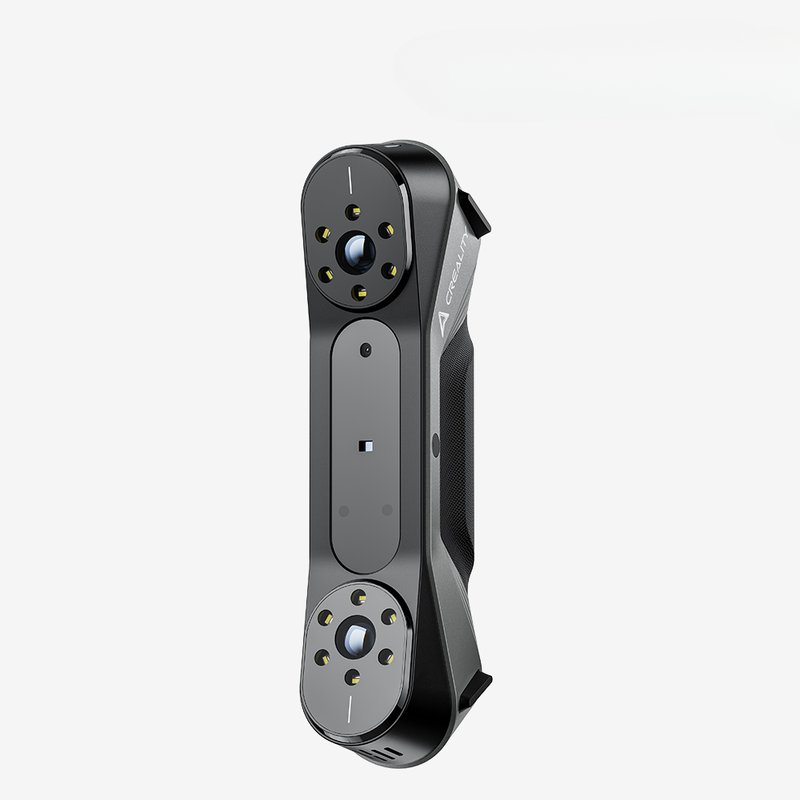

CR-Scan Raptor — Scanner

Features

7 blue parallel laser lines.

Metrology-grade accuracy up to 0.02mm.

Scanning speed up to 60fps.

Can scan objects within a range of 5-2000mm.

Anti-shake for smooth scanning.

No spatter when scanning black/metal objects.

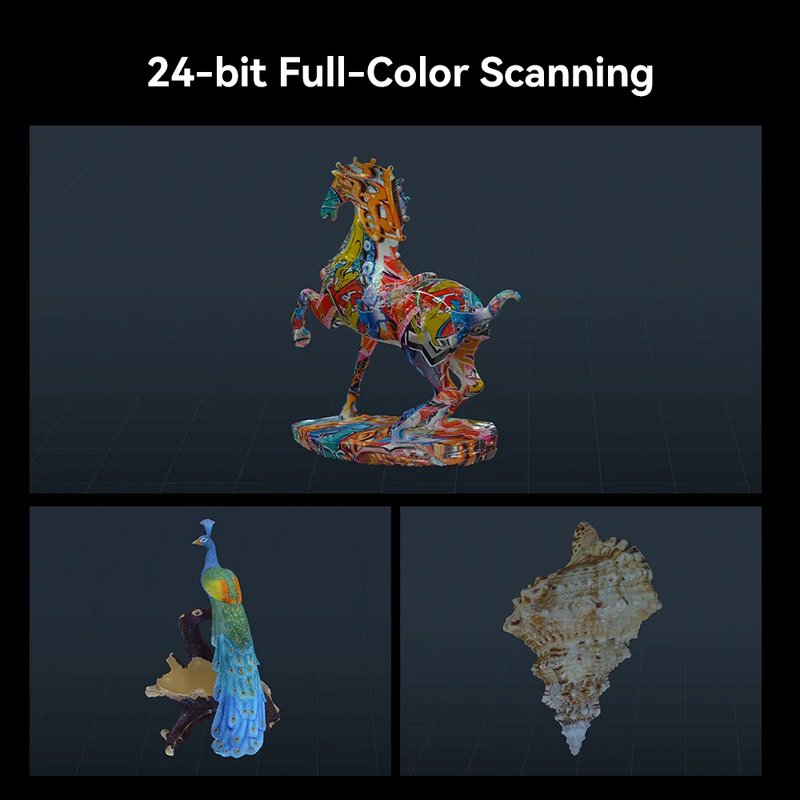

24-bit full-color scanning.

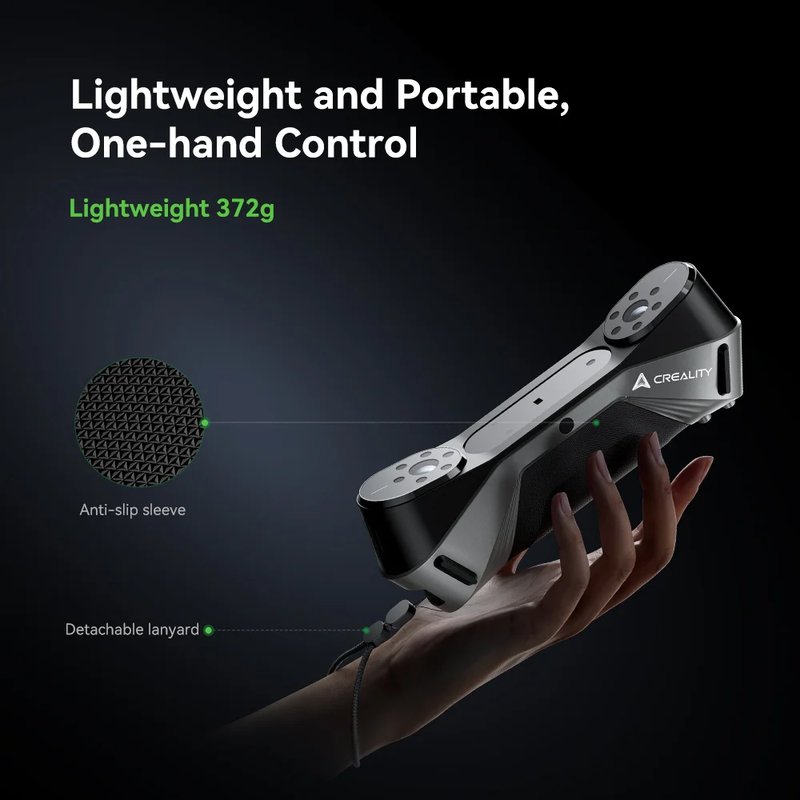

Lightweight and compact (215mm x 50mm x 74mm), weighing only 372g.

Specifications

Scanning method: blue light (blue 7-line laser)/NIR (infrared binocular structured light)

Blue light (blue 7-line laser) mode:

Accuracy: up to 0.02mm at 100mm

3D resolution: 0.02-2mm

Scanning speed: up to 60fps

Minimum scanning volume: 5mm x 5mm x 5mm

Single shot range: 270mmx170mm@300mm

Working distance: 150mm-400mm

Color mapping: yes

Alignment method: marking

NIR (infrared binocular structured light) mode:

Accuracy: up to 0.1mm

Three-dimensional resolution: 0.1-2mm

Scanning speed: up to 20fps

Single shot range: 930mmx580mm@1000mm

Working distance: 170mm-1000mm

Color mapping: yes

Alignment mode: marker/geometry/texture

General parameters:

3D imaging camera resolution: 1920x1200

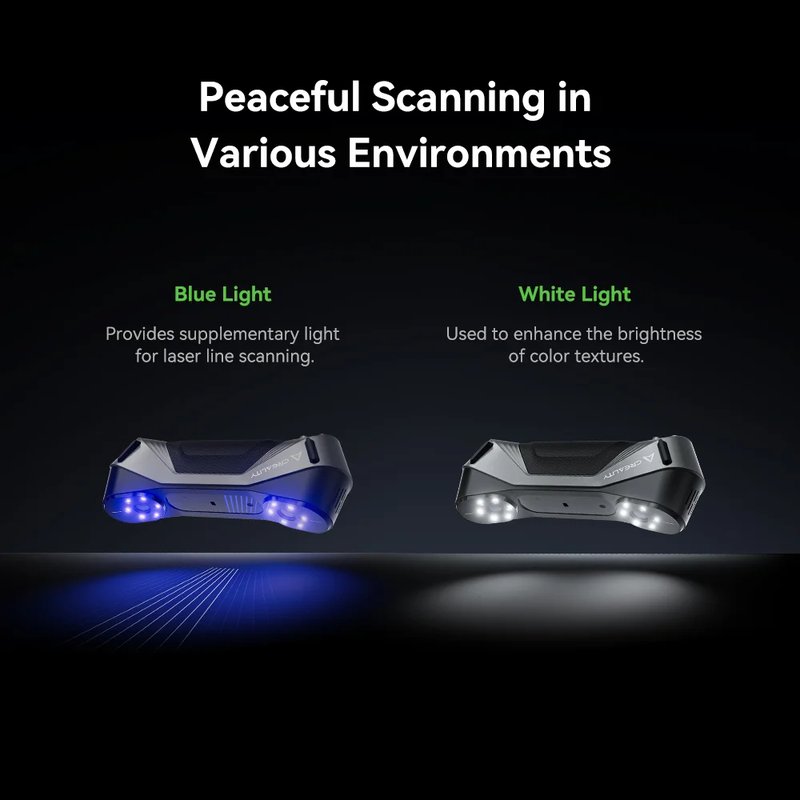

Color fill light: 12 white LEDs

Marker recognition enhancement: 12 blue LEDs

Laser safety: Class I (eye safety)

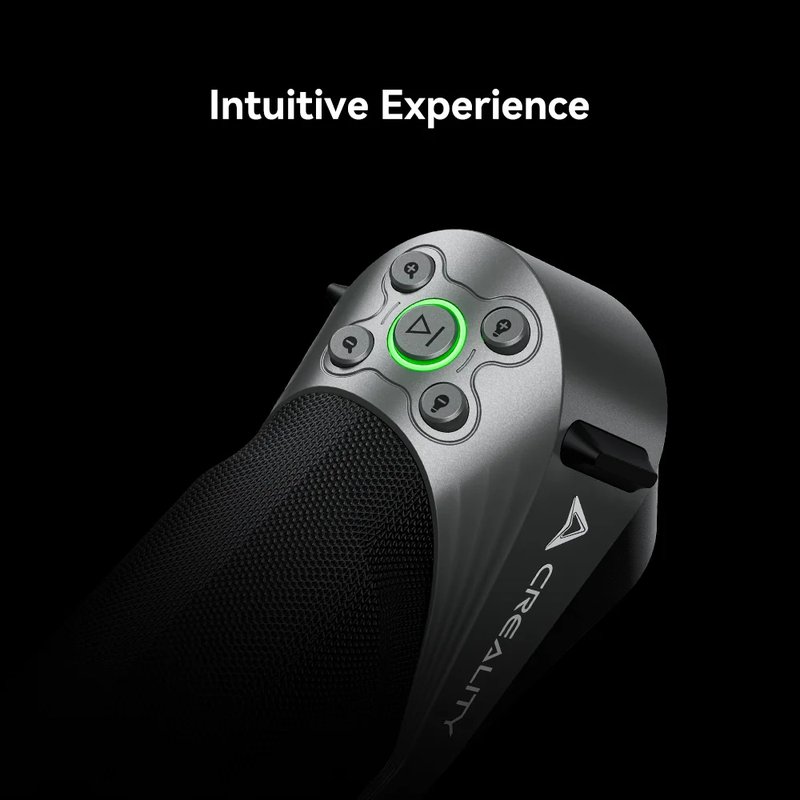

Button: mechanical

IMU: yes

Output format: OBJ/STL/PLY

Input power: 12V 2A

Data interface: Type C/USB3.0

Device size: 215mmx50mmx74mm

Device weight: 372g

Calibration plate: High-precision glass calibration plate

Wireless scanning: Used with future wireless scanning accessories

System support: Windows/macOS

Operating temperature: -10 C to 40 C

Operating humidity: 0-90%RH

Accuracy is evaluated under laboratory conditions (the measurement object is a 100mm sphere pair), and the actual results may be affected by the operating environment such as temperature, vibration and other factors.

Notes

Due to the different monitor and light effect, the actual color of the item might be slightly different from the color showed on the pictures.

Please allow 1-3mm measuring deviation due to manual measurement. Thank you for your understanding!

Packing List

Scanner*1
