SCULPFUN iCube Pro Max 10W — Engraving Machine

Features

1. 10W super powerful cutting laser: iCube ProMax uses a 10W laser diode laser, which has a 0.08mm laser focus, has more powerful laser performance, stronger cutting penetration, can engrave or cut more difficult materials, has higher work efficiency, and can complete laser tasks faster.

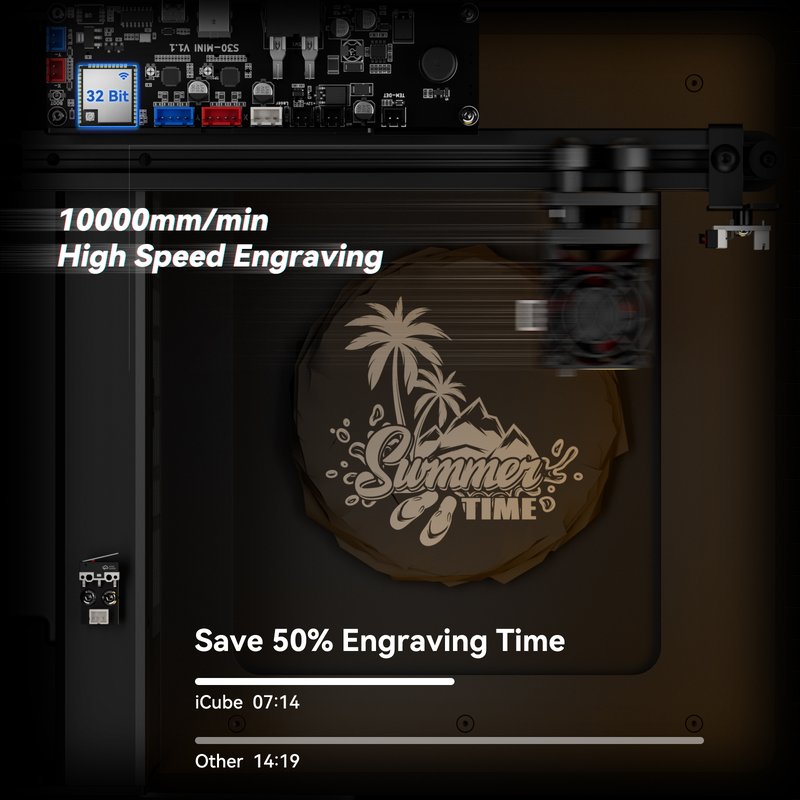

2. High-speed engraving: iCube uses a new 32-bit high-speed engraving motherboard, which can achieve an engraving speed of 10000mm/min, which is faster than other portable engraving machines and greatly improves engraving efficiency.

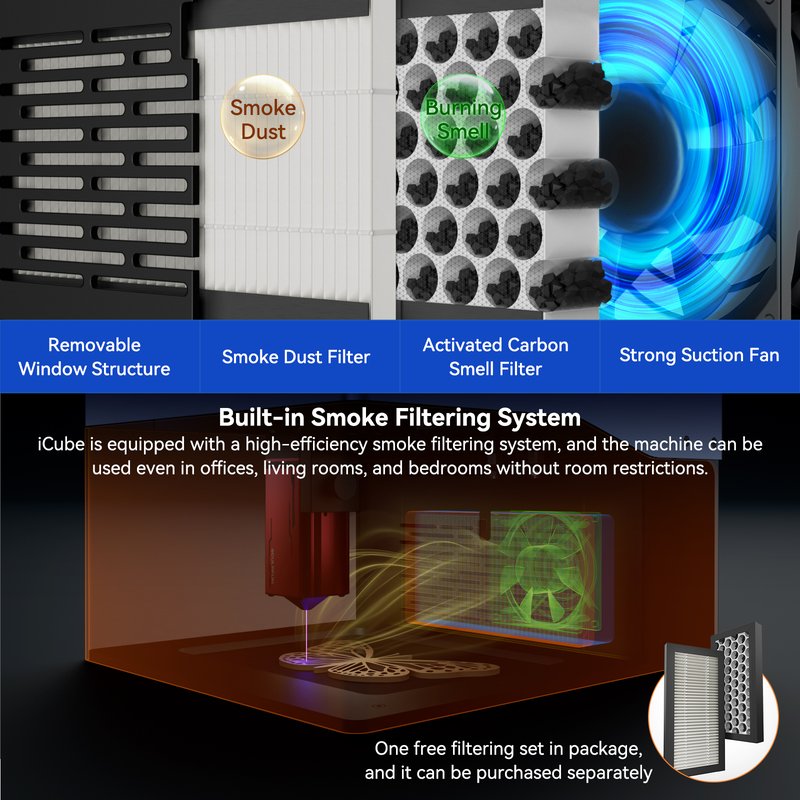

3. Comes with a smoke filter: iCube comes with a smoke filter, which eliminates the need for a smoke exhaust box and can effectively filter the smoke generated during carving. You can carve freely in the office or at home to avoid pungent smoke and enjoy the fun of carving.

4. Multiple connection methods: Support mobile phone and computer connection. You can use the Sculpfun APP on your mobile phone to connect to the iCube machine, or you can connect it to a computer via Bluetooth or Type-C interface data cable. Compatible with the following operating systems: Win7/Win8/Win10/Win11/MAC/IOS/Android/Linux. Sculpfun APP has the functions of text editing, taking pictures, photo album, material library, eraser and manual resizing. Multiple engraving modes: grayscale, black and white, sketch, Dither and other engraving mode adjustments. Make your pattern personal.

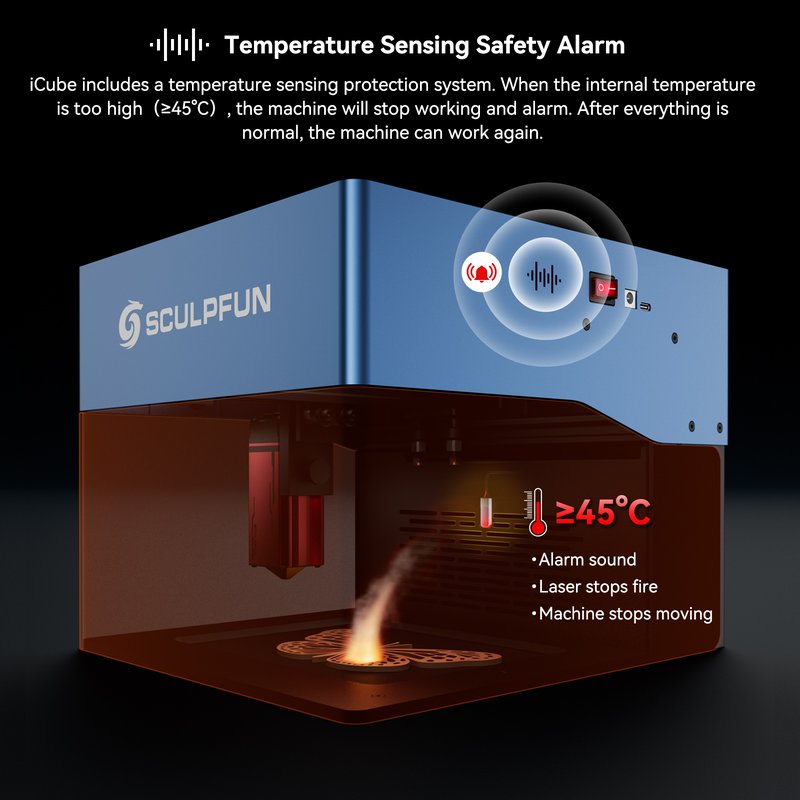

5. Temperature alarm function: iCube comes with a temperature alarm device. When the temperature inside the engraving machine exceeds 45 C, the machine will stop working and sound a buzzer alarm to ensure the safety of the machine and users. When the temperature drops, it can work normally after restarting.

6. All-round eye protection shield: iCube is equipped with a removable, fully wrapped acrylic eye shield, which can effectively protect your eyes from all angles. You and those around you can watch laser engraving without wearing goggles.

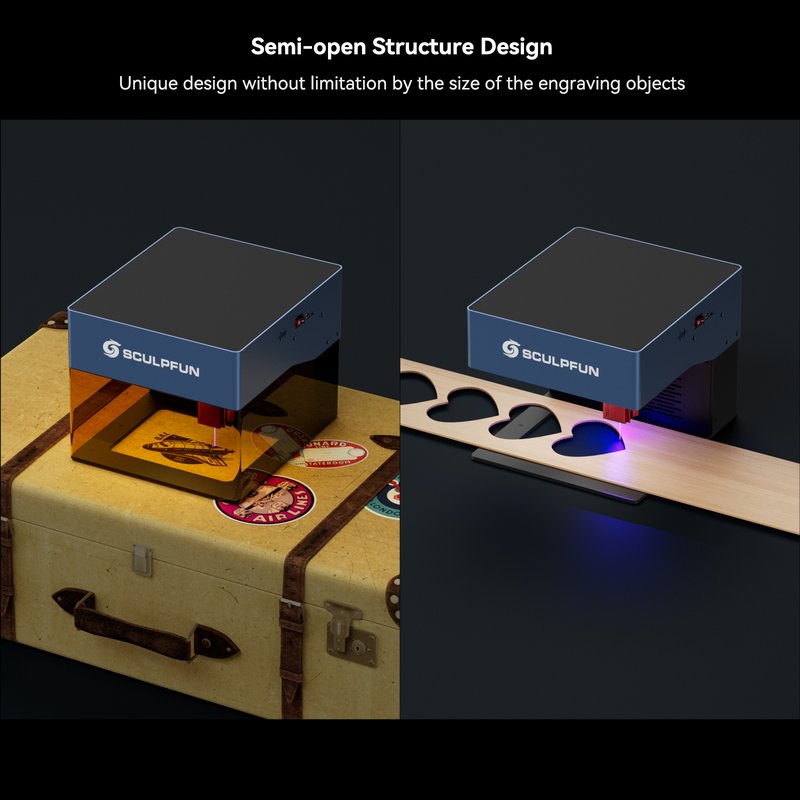

7. Unlimited size of engravings: iCube adopts a unique semi-open structure design. The engravings can be placed inside the machine for engraving, or the machine can be placed on the surface of large objects for engraving. There is no limit to the size of the engravings. The engraving pattern area is 120x120mm.

8. Replaceable laser head lens: iCube series uses an innovative laser head that supports replacement of lenses, which will greatly increase the service life of the laser, which is more than 10 times longer than that of other general lasers. When the laser head is used for a long time and the lens is damaged or dirty, the lens can be replaced to restore the cutting power.

Be Careful:

1. About the engraving materials: Be careful not to engrave mirror materials. Laser reflection may cause damage to the laser.

2. About the smoke filter: A set of free filter cotton is included with the purchase. It needs to be replaced after long-term use to ensure the filtering effect.

3. About the machine lens: A free lens is included in the package when you purchase it. The lens is very cheap and can be easily purchased from SCULPFUN.

Specifications

Product model: Sculpfun iCube ProMax 10W

Fan speed: 5000RPM

Temperature sensor: triggered at 45 degrees Celsius

Bluetooth: 4.2

Wi-Fi: 2.4Ghz

Wavelength: 455nm

Engraving area: 120*120mm

Laser head power: 10W

Image format: JPEG/BMP/TIF/GIF, etc.

Laser spot: 0.08mm

Working voltage: 110-240V AC, 50/60Hz

Working current: 12V 7A

Best focusing distance: 40mm

Supported systems: Win7/Win8/Win10/Win11/MAC/IOS/Android/Linux

Operating application software:

Computer: lightburn/LaserGRBL

Mobile: Sculpfun APP

Product weight: 3.2KG

Product size: length, width and height: 262*300*226mm

Packing weight: 4.75KG

Packing size: 318*282*360mm

Notes

Due to the different monitor and light effect, the actual color of the item might be slightly different from the color showed on the pictures.

Please allow 1-3mm measuring deviation due to manual measurement. Thank you for your understanding!

Packing List

1 x Engraving machine

1 x U-shaped light shield

1 x Metal backing plate

1 x Laser

1 x Power adapter

1 x Power cord

1 x Type-C data cable

1 x Filter cotton set

1 x Lens repair box

1 x Goggles

1 x Basswood board

1 x Density board

1 x Installation manual
