YQK120 /8 10-120mm??/ /victool — Hydraulic Pliers (Yellow)

Features

1. Flexible valve: The knob controls the pressure increase and pressure release, and the knob can be turned in one second, which is simple to operate and doubles the efficiency;

2. Matching mold: It is equipped with multiple specifications of crimping molds, and there is no need to purchase adapters separately. The specification information is marked on the mold through a steel stamp, which can quickly confirm the corresponding mold specifications, making the crimping more accurate and tight;

3. Dual-speed oil pump: dual-speed oil inlet design, strong oil pump core, small resistance, repeated operation without wear;

4. Labor-saving push rod: large handle movable shaft, lever mechanics, with thickened cylinder body, tight crimping is more labor-saving;

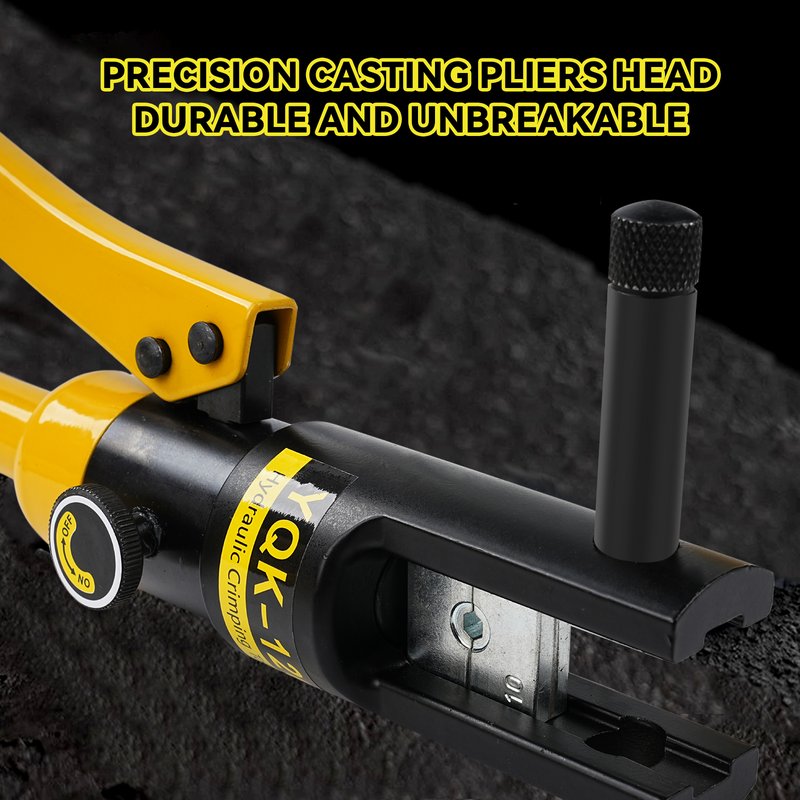

5. Upgraded pliers head: precision one-piece casting pliers head, high-density pliers head, not easy to break, durable;

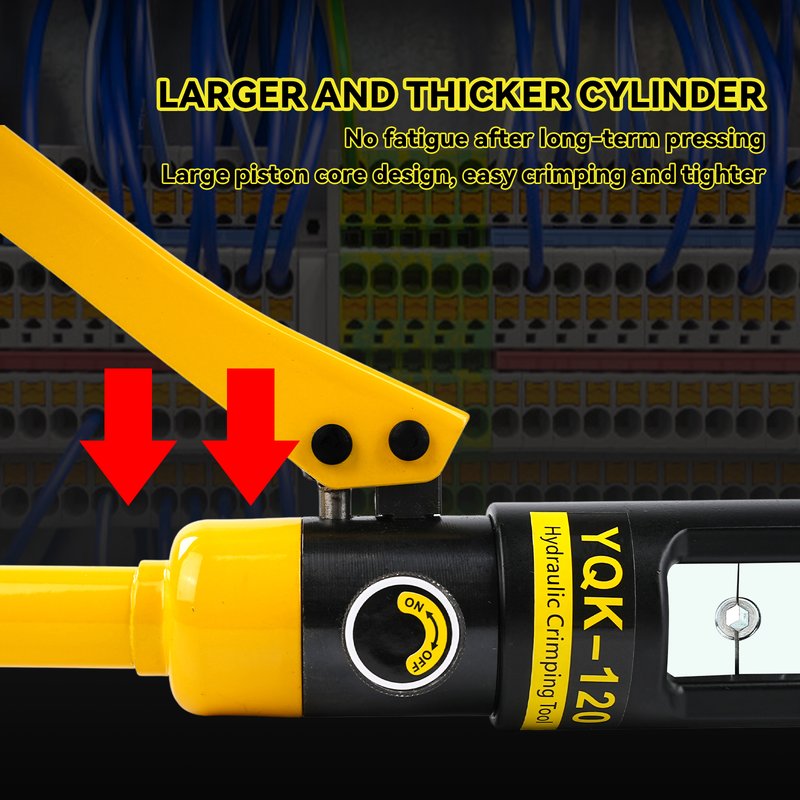

6. Thickened cylinder body: thickened cylinder body design, built-in oil, double the pressure, high sealing to protect the oil from leakage;

7. Rubber handle: non-slip rubber handle, no need to worry about sweaty palms, long-term holding without tiring hands, no hurting hands, let you work comfortably;

8. Surface technology: the mold has been electroplated and heat-treated, with good anti-rust effect, high hardness, and tight crimping without falling off;

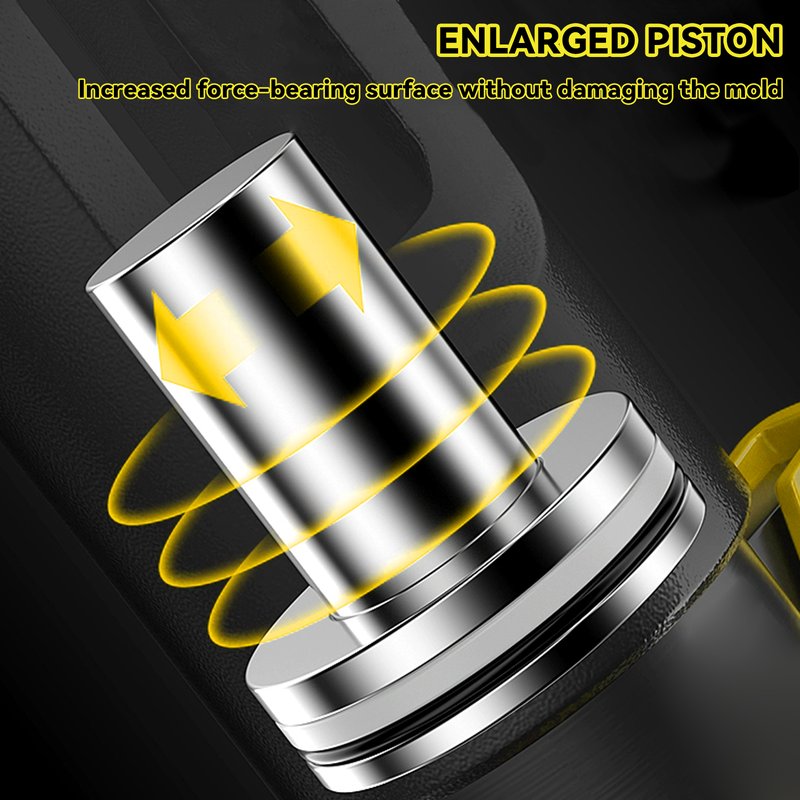

9. Piston core: enlarge the piston, increase the force area, and the mold is not easy to deform;

Specifications

Model: YQK-120 straight clamp head

Pressure: 10T

Stroke: 16mm

Crimping form: Hexagonal crimping

Crimping range: 10-120mm²

Crimping mold: 10/16/25/35/50/70/95/120mm² (8 sets in total)

Product size: 42.5*15*8.5cm

Product weight: 3.85Kg

Notes

Due to the different monitor and light effect, the actual color of the item might be slightly different from the color showed on the pictures.

Please allow 1-3cm measuring deviation due to manual measurement. Thank you for your understanding!

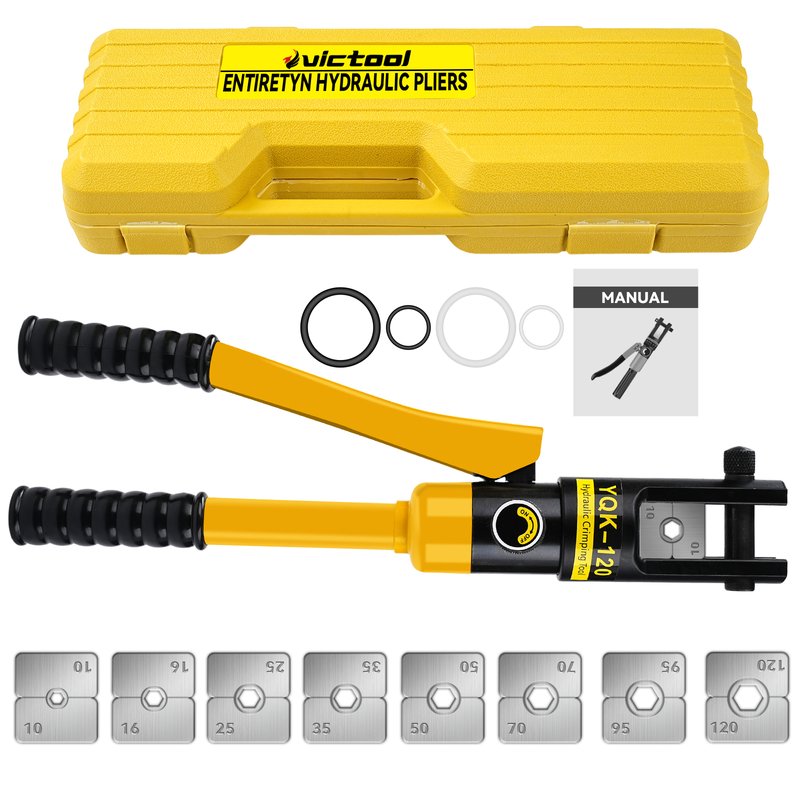

Packing List

YQK-120 Hydraulic pliers host*1

Yellow plastic box*1

English manual*1

Sealing ring*2

8 sets of molds:

10mm²*1

16mm²*1

25mm²*1

35mm²*1

50mm²*1

70mm²*1

95mm²*1

120mm²*1
